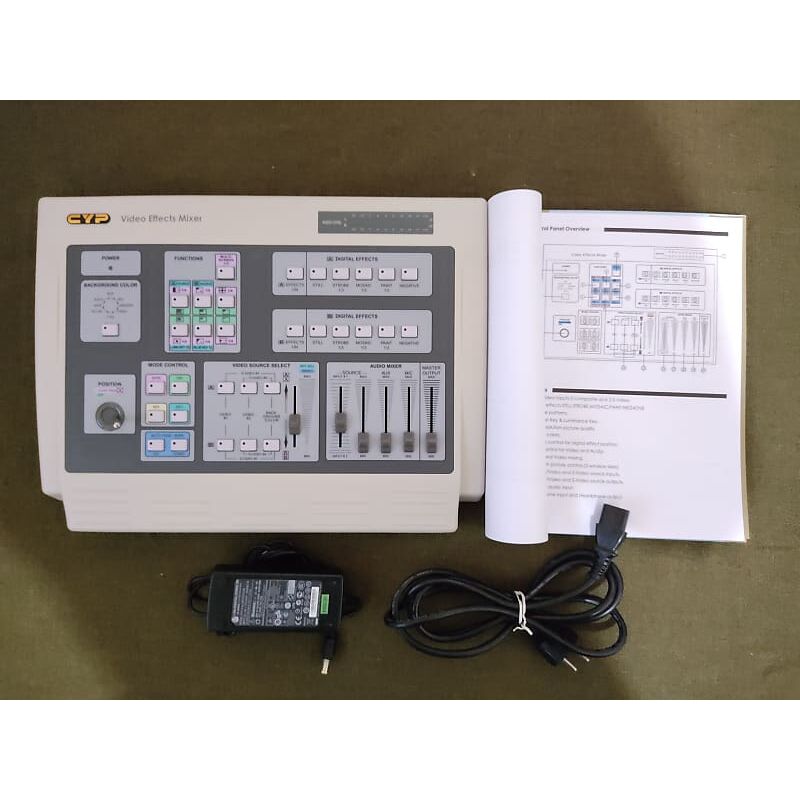

CMX-07 Video Mixer
Please sign in so that we can notify you about a reply
2-channel video mixer
PAL/NTSC switchable
4 video inputs : 2 Composite and 2 S-Video
Chroma key & Luminance key
2 Audio/video and S-video outputs
Auxiliary audio input
Microphone input and headphone output
Brand:
Cypress Technology
Product Type:
Digital Video Processor
Specifications
Wipe Patterns:
96
Effect Type:
Video, Still, Mosaic, Paint, Negative, Wipe, Mix, Fade, Picture-In-Picture, Chroma Key, Luminance Key
Special Features:
Special Effects in Each of A/B Program Buses, 2 Video Inputs Mixable with Composite and S-Video Source, 2 Audio/Video and S-Video Recording Output, Hroma Key and Luminance Key, Selective Size and Position for Digital Effects Area and Pip Windows
Power Rating:
15W
Applications:
Video Production, Karaoke Lounge, Corporate or Personal Tape Making
Performance
Signal-to-Noise Ratio:
Video, 48dB (Composite), 50dB (Y/C) Audio, 60dB
Inputs and Ports
Headphone Output Type:
1 (Headphone), -20dBv to 80dBv, 82 Unbalance, Phone-5 Jack
Recording Output Type:
2x(Video out 1,2), External Sound Input, Video Output:1.0Vp-p 75Ω NTSC (PAL) Composite Signal, Pin-Jacks, Y/C Output, Y Signal: 1.0Vp-p 75Ω C Signal: 0.3Vp-p 75Ω 2, Mini Pin 4-Pin Connector, Recording Output, Audio Output, -6dBs/ 1kΩ Pin Jacks(L/R)
External Sound Input:
MIC Input:x1 (MIC), -60dBv/600Ω, AUX Input:x1(AUX), -6dBs/20kΩ/Pin Jacks(L/R)
Source Input:
4x(Source 1, 2, 3, 4), Video Input, 1.0Vp-p 75Ω NTSC (PAL) Composite Signal, Pin-Jack Source Input Y/C Input, Y Signal: 1.0Vp-p 75Ω, Mini Din 4-Pin Connector, C Signal: 0.3Vp-p 75Ω, Mini Din 4-Pin Connector, Audio Input, -6dBs/20kΩ Pin Jack (L/R)
Power
Power Source Type:
12V DC
Dimensions
Width:
40cm
Depth:
30cm
Height:
5.5cm
Weight:
2.5kg
