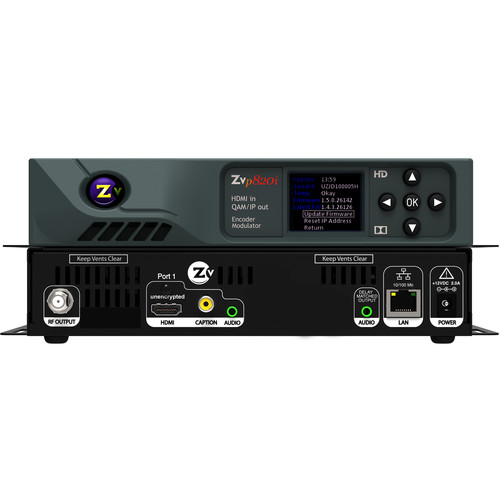

ZvPro820i-NA ZeeVee Encoder/Modulator, 2xHDMI Video Input up to 1080i/1080p, US Plug
Please sign in so that we can notify you about a reply
ZvPro810i delivers uncompromising digital HD video distribution over your existing coax cabling from HDMI sources, as well as providing simultaneous IP streaming with no performance compromise. This one channel QAM, MPEG2, Encoder/Modulator unit allows you to easily distribute content up to 1080p resolution to an unlimited number of displays over and RF network, using the TV's built-in QAM tuner, or over an IP network to set-top boxes connected to displays. Manage ZvPro units can be managed locally through the color LCD screen or via an intuitive web-based, management interface Maestro. Generate a looping signage channel with ZvShow, deliver messages to any screening using the built-in Emergency Alert System.
Features
- SUPERIOR VIDEO QUALITY: Full MPEG-2 implementation;I, P, and B Frames;Low latency;Full motion estimation with a wide search range
- EASE OF MANAGEMENT: Powerful, highly intuitive web interface;On-site or remote management;Configure/manage multiple units from front Panel Display for local management
Brand:
Kramer
Product Type:
Encoder/Modulator
Specifications
Maximum Operating Temperature:
45°C
Streaming:
IP Streaming
Series:
ZeeVee
Storage File System:
MPEG2
Special Features:
Superior Video Quality, High Reliability, Ease of Management, Extensible Architecture
Control Interface Type:
RJ45
Applications:
Education, Government, Hospitality, Retail, Sports, Entertainment, Broadcasting, Healthcare, Housing, Energy and Other Industries
Humidity:
10 to 80%
Minimum Operating Temperature:
0°C
Performance
Video Resolution:
1080pixels
Resolution:
2kHz
Video Encoding Type:
MPEG2 HD: ISO13818-2 Main Profile@HighLevel
Bit Rate:
18Mbps
Audio Encoding and Bitrate:
AC-3, ATSC A/52
Inputs and Ports
Audio Input Type:
Digital Audio, Stereo Analog
Video Input Type:
2 (HDMI)
Input Port Type:
Digital Audio, Stereo Analog
Interface Type:
10Mb, 100Mb
Connectivity
Supported Stream Platforms:
UDP (Unicast or Multicast)
Power
Power Compatibility:
US Plug
Power Source Type:
External Power Supply
Dimensions
Width:
25.4cm
Depth:
4.4cm
Height:
20.3cm
Weight:
1.4kg
Shipping Weight:
2.3kg
Other
Voltage Rating:
100 TO 240V AC
Standards Met:
FCC Class A, IEC60065, EN61000, CE, RoHS, ADA Compliant, TAA Compliant
No reviews found
