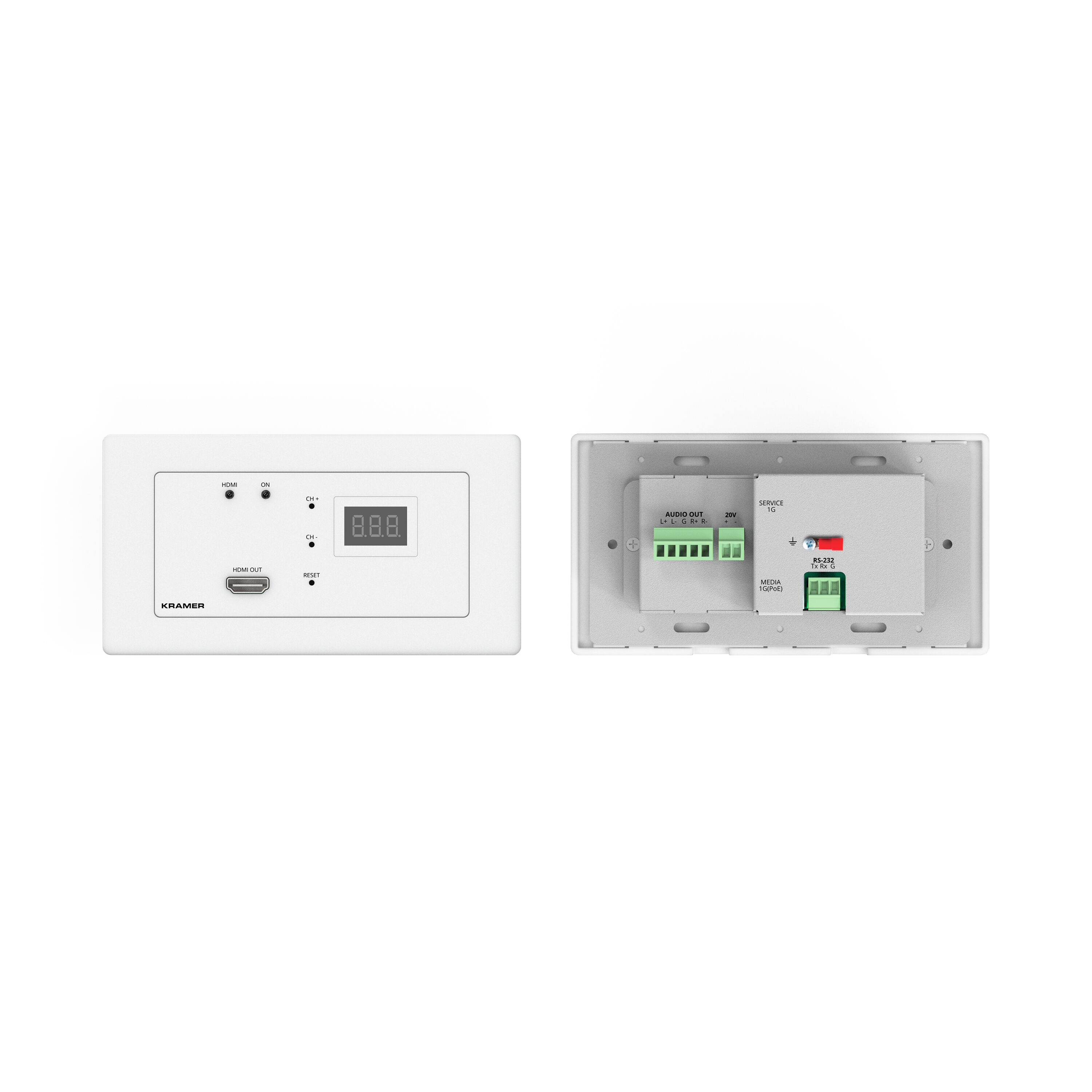

WP-DEC7/EU(W)-80/86 High-Performance, AVoIP Wall Plate Decoder for 4K over 1G network, EU Plug
Please sign in so that we can notify you about a reply
WP-DEC7 is an advanced decoder for streaming 4K video signals via Ethernet over copper cable.
Features- Video Streaming Receiver - Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface
- Streaming Support - Unicast and multicast
- Analog Audio De-Embedding Output - Extract the HDMI audio or LAN streaming audio and output it as balanced analog audio
- Convenient and Comprehensive Control - Control the unit using intuitive embedded web pages, Protocol 3000 API commands via Ethernet or front panel LCD and buttons
- Control Gateway - Through P3K or special TCP connection, user could control/communicate with RS232 and CEC to the connected devices
- Video Wall - Up to 16x16 size
- PoE Support - Option to power with PoE connection from a PoE switch
Brand:
Kramer
Part number:
59-00001590
Specifications
Product Type:
AVoIP Wall Plate Decoder
Maximum Operating Temperature:
+45°C
Streaming:
RTSP (Real Time Streaming Protocol)
Recording File Format:
LPCM, JPEG
Control Type:
Reset Button, Channel Display
Special Features:
High Performance, Streaming Support, Analog Audio De-Embedding Output, Convenient and Comprehensive Control, Control Gateway, Video Wall, PoE Support
User Interface Indicator Type:
Indicator, Button
Applications:
Command and Control Rooms, Corporate Offices and Government, Schools, Universities, Public Venues
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Resolution:
4K@60Hz 4:2:0, 4K@30Hz 4:4:4, 4K@30Hz 4:4:4
Resolution:
4096x2160pixels@60Hz, 1600x1200pixels@60Hz, 1280x960pixels@60Hz, 848x480pixels@60Hz, 3840x2160pixels@60Hz, 1600x900pixels@60Hz, 1280x800pixels@60Hz, 800x600pixels@60Hz, 1920x1200pixels@50Hz, 1440x900pixels@60Hz, 1280x768pixels@60Hz, 720x576pixels@60Hz, 19
Video Decoding Type:
JPEG2K Based, Proprietary Stream
HDCP Compliance Type:
2.2
Bit Rate:
Peak: 850Mbps, 4K Average: 350Mbps, 1080p Average: 250Mbps
Audio Sample Rate:
7.1/24 Bit@ 92kHz
Scaling and Cropping (Yes/No):
Yes
Inputs and Ports
Audio Input Type:
LPCM upto 7.1/24Bit@192kHz (LPCM), Dolby AtmosTM, Dolby TrueHD, Dolby Digital PlusTM, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0 (Dolby),DTS-HD Master AudioTM, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Dig
Output Port Type:
1xHDMI on a Female HDMI Connector
Connectivity
Supported Stream Platforms:
HTTPS, 802.1x, OWASP-10, AES-128
Network Switch Type:
IGMP Snooping Non-Blocking, Layer 2
Power
Power Compatibility:
EU
Current Rating:
6A
Power Source Type:
POE
Current Rating:
6A
Dimensions
Width:
15.1cm
Depth:
4.5cm
Height:
8.6cm
Weight:
0.4kg
Shipping Weight:
0.7kg
Other
Voltage Rating:
20V DC
Standards Met:
CE, FCC, RoHs, WEEE
No reviews found
