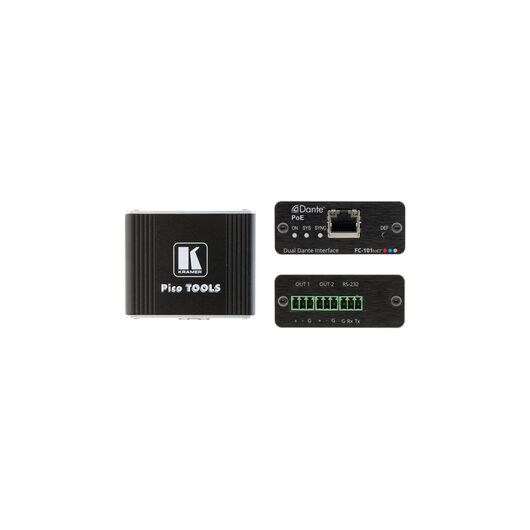

FC-101NET 2-Channel Dante Decoder & PoE Acceptor
Please sign in so that we can notify you about a reply
FC−101Net is a compact 2−channel Dante™ decoder with 2 balanced mono audio outputs. It enables connecting non−Dante devices, such as amplifiers and powered speakers, to a Dante network and enables volume control. FC−101Net is powered over Ethernet from any standard PoE providing network switch.
Features
- Dante Network Interface.
- PoE Acceptor.
- Interoperability - Supports AES67 and Dante allowing high-performance interoperability between IP-based audio networking systems.
- Input - 2 Dante channels on an RJ-45 connector.
- Outputs - 2 balanced mono audio on a 3-pin terminal blocks.
- Output Volume Control.
- Versatile Control - Via the Dante IP control matrix and Kramer Protocol 3000 via RS-232 connection.
- Professional, Studio Grade Signal Conversion Technology - Includes the latest generation 32-bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz.
Brand:
Kramer
Part number:
13-80490010
Specifications
Product Type:
Dante Decoder and PoE Acceptor
Maximum Operating Temperature:
+40°C
Special Features:
Interoperability-Supports AES67 and Dante Allowing High-Performance Interoperability Between IP-Based Audio Networking Systems, Versatile Control-Via the Dante IP Control Matrix and kramer Protocol 3000 Via RS-232 Connection
Applications:
Classroom, Retail, Small to Mid-Size Meeting Rooms, Boardrooms
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Bracket set, Double-Sided Adhesive Dual Lock Tape
Performance
Bit Rate:
32bits
Inputs and Ports
Input Port Type:
RJ45
Connectivity
Network Switch Type:
PoE
Power
Power Source Type:
PoE 48V DC
Current Rating:
100mA
Dimensions
Width:
6.22cm
Depth:
5.1cm
Height:
2.4cm
Weight:
0.1kg
Other
Standards Met:
CE, RoHS Compliant, WEEE
