DCT-9DD Dolby/DTS Digital Downmixer with Digital
Please sign in so that we can notify you about a reply

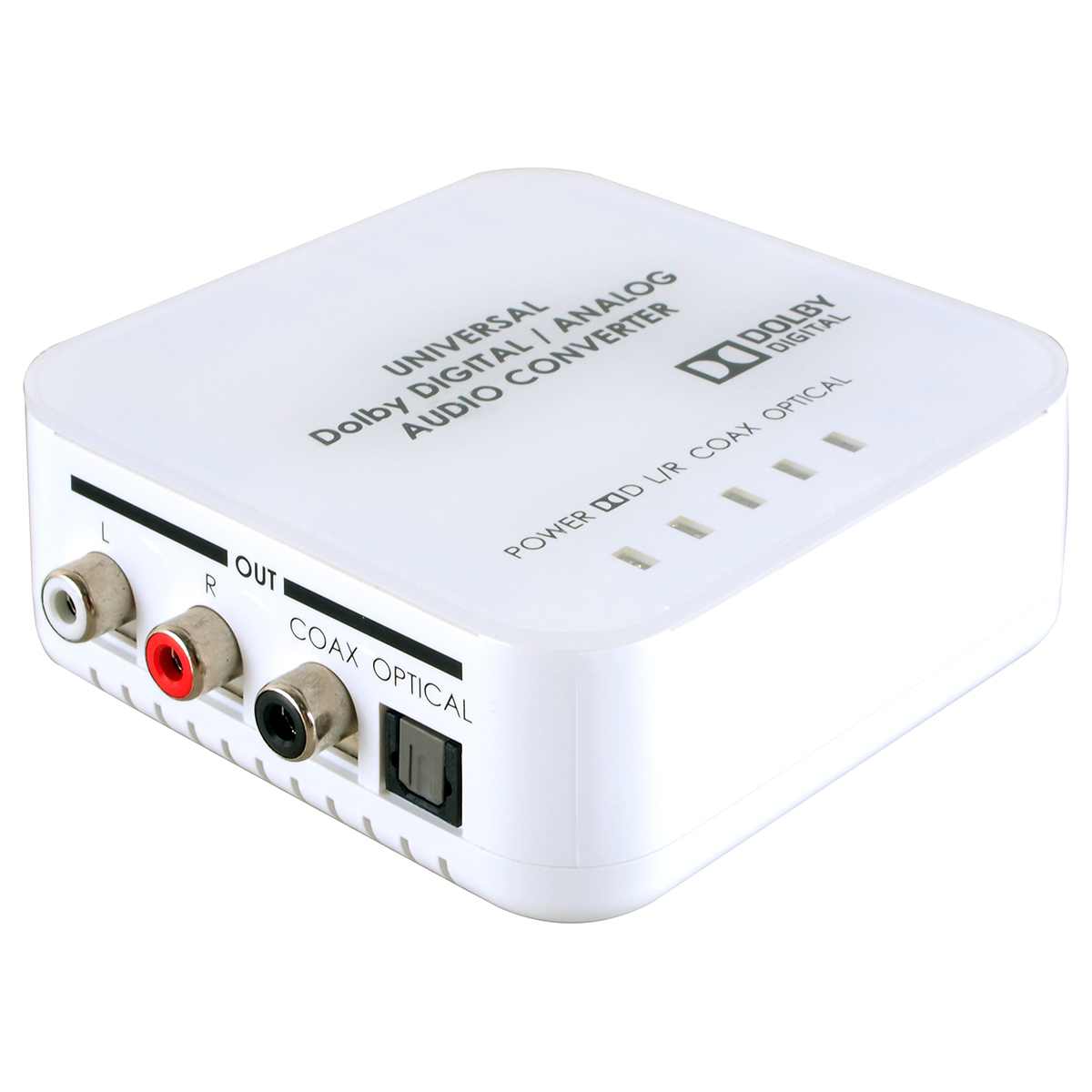

The Universal Digital/Analog Audio Converter with Dolby® Digital & DTS® 2.0+Digital Out Decoder can convert among Optical, Coaxial and analog audio signals. With the ability to convert digital signals into analog and analog signals into digital, this device supports the simultaneous conversion of audio formats so when converting Optical into analog audio you can also convert it into Coaxial. Therefore, if you find yourself limited by multiple audio formats the Universal Digital/Analog Audio Converter with Dolby Digital & DTS 2.0+Digital Out Decoder is the perfect choice.
Features
- Dolby Digital Decoder technology embedded
- DTS 2.0+Digital Out Decoder technology embedded
- Integrated digital interpolator filter and Digital-to-Analog Converter (DAC )
- Integrated Analog-to-Digital Converter (ADC)
- Supports input sampling rates from 32 to 96 kHz and output at 48kHz
- Provides electromagnetic-noise-free transmission
- Supports last power memory function
- Easy to install and operate
- Compact and elegant design
Brand:
Cypress Technology
Product Type:
Universal Digital/Analog
Specifications
HDMI Embedded Audio Channels:
Dolby Digital Decoder Technology, DTS 2.0+Digital Out Decoder Technology
Maximum Operating Temperature:
+40°C
Audio Decoding Type:
Decoding Lt/Rt, Decoding Lo/Ro
Special Features:
Integrated Analog-to-Digital Converter (ADC), Supports Input Sampling Rates from 32 to 96kHz and Output at 48kHz, Provides Electromagnetic-Noise-free Transmission, Supports last Power Memory Function, Easy to Install and Operate, Compact and Elegant Desig
Applications:

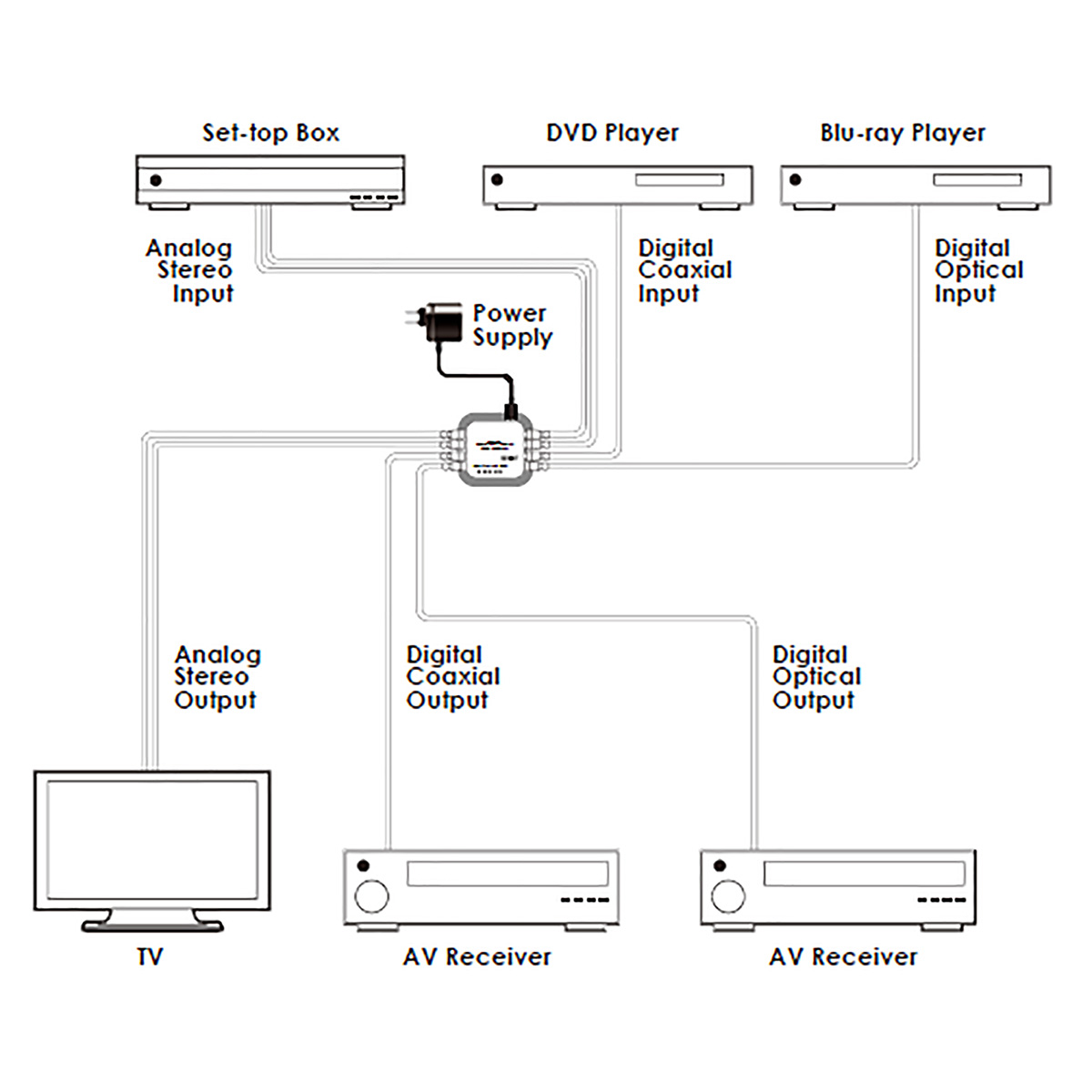

Analog Audio to Digital Audio Signal Conversion (ADC), Digital Audio to Analog Audio Signal Conversion (DAC), Simultaneous Digital and Analog Audio Output, Downmixing of Dolby Digital Signals, Downmixing of DTS 2.0+Digital out Signals
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
5V/1A Power Adaptor
Inputs and Ports
Input Port Type:

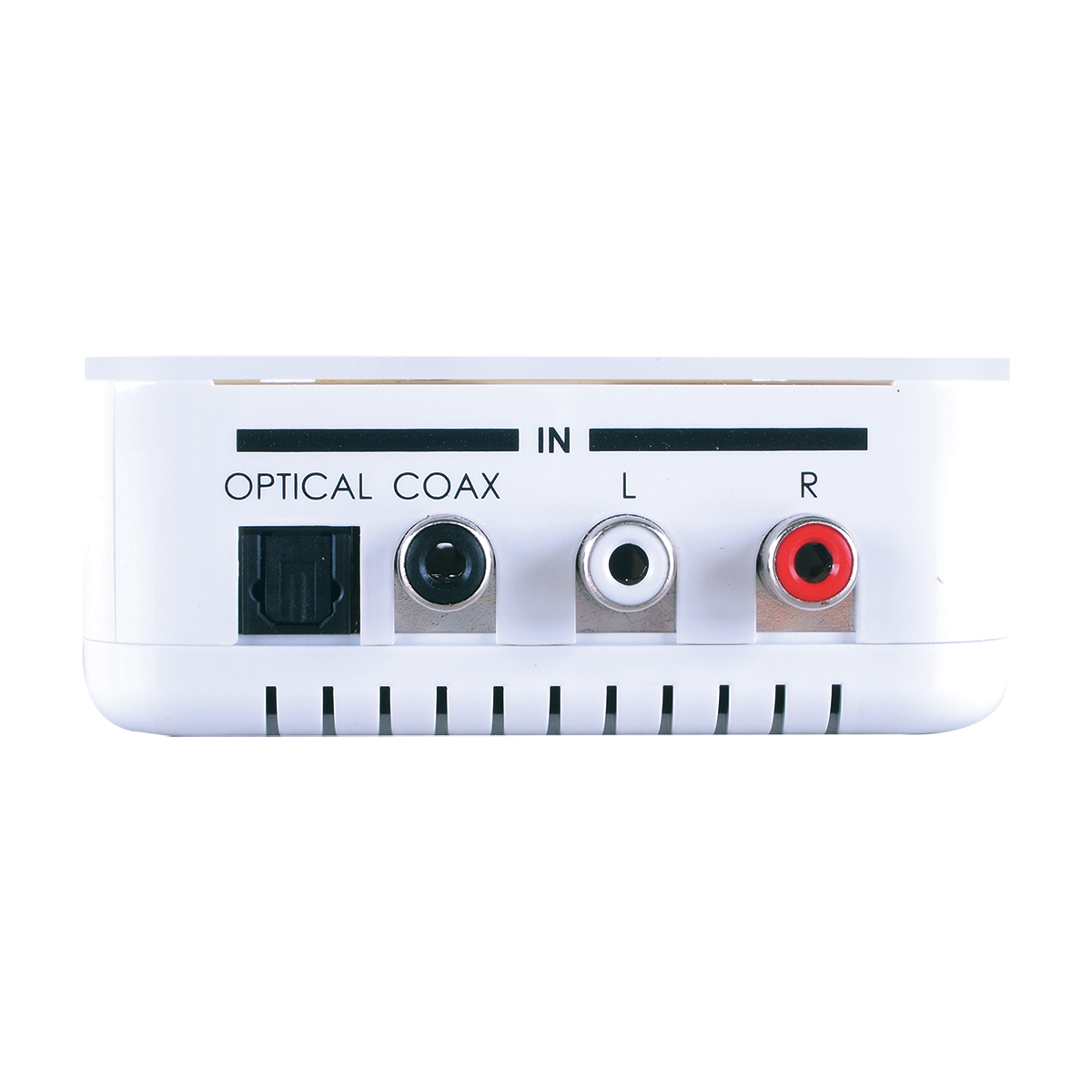

1xOptical, 1xCoaxial, 1xAnalog Stereo (L/R)
Output Port Type:

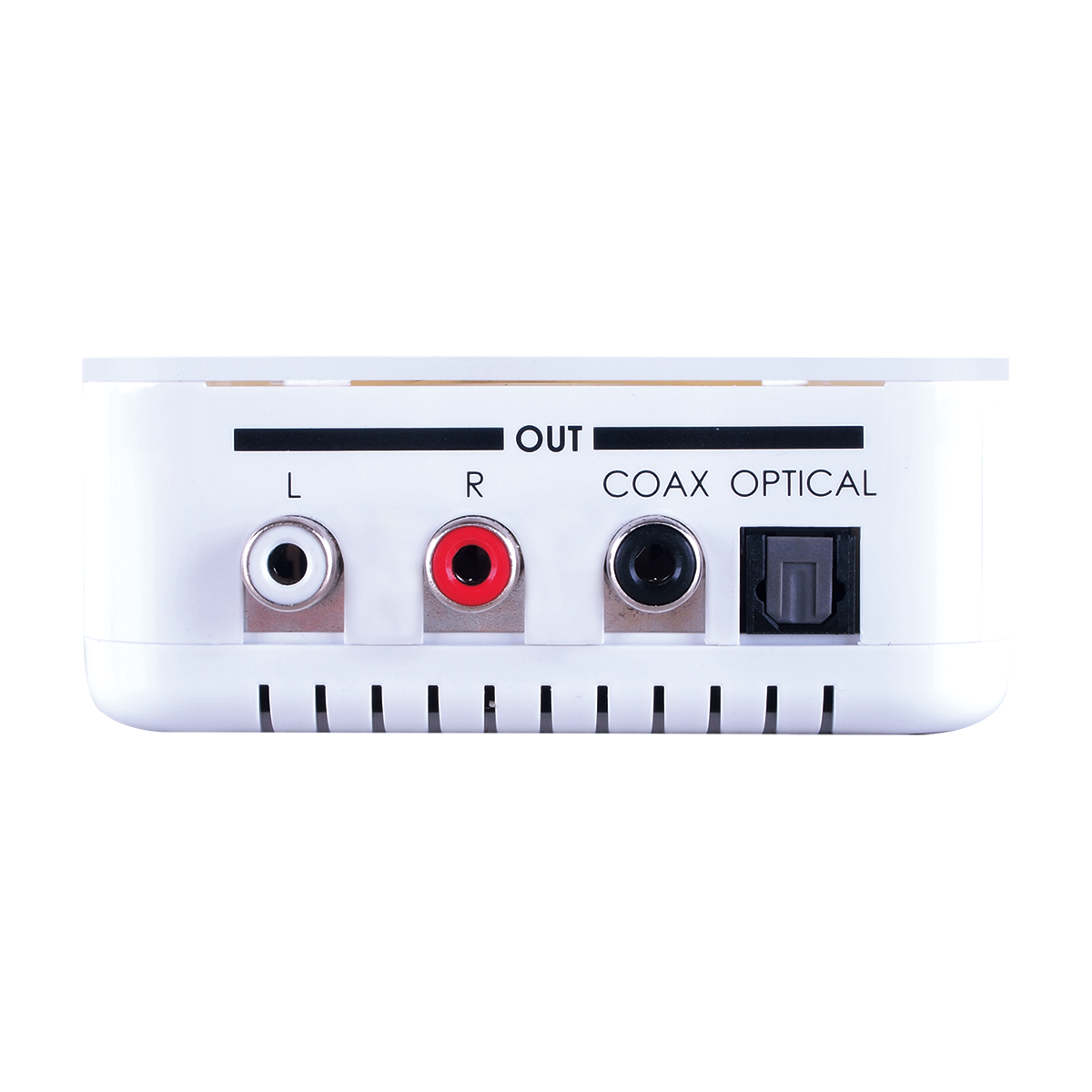

1xCoaxial, 1xOptical, 1xAnalog Stereo (L/R)
Power
Current Rating:
1A
Dimensions
Width:
9.7cm
Depth:
8.5cm
Height:
3.5cm
Weight:
108g
Other
Standards Met:
US/EU, CE/FCC Compliant/UL Listed
No reviews found
