DCT-1D Optical Digital to Analog Audio Converter with Dolby Digital Decoder
Please sign in so that we can notify you about a reply
The Optical to Analog Audio Converter (DAC) with Dolby® Digital Decoder provides the ideal solution for converting an optical digital audio signal to analog stereo audio. With audio sampling rate support up to 48 kHz (Dolby Digital)/96 kHz (LPCM) and I/O data rate support up to 24-bit, it provides high quality sound conversion. The Dolby Digital Decoder function guarantees that Dolby digital audio signals are downmixed to analog stereo without loss of quality. This unit is perfect for use in computer audio systems or digital mixing consoles and can be powered from any spare USB port allowing it to be used with USB equipped HDTVs, Blu-ray players or computers without the need for a separate power supply.
Features
- Supports optical digital audio signal input and conversion into analog audio signal L/R output
- Supports uncompressed digital LPCM stereo or Dolby Digital 5.1CH audio inputs
- Supports LPCM 2CH audio sampling rates from 32 to 96 kHz (32, 44.1, 48, 88.2 and 96 kHz)
- Supports Dolby Digital 5.1CH audio sampling rates of 48 kHz
- Supports Dolby Digital audio downmixing to 2-channel audio
- Supports S/PDIF bitstream 24-bit of data for the left and right channels
- Compact, elegant design and easy to install
Brand:
Cypress Technology
Product Type:
Audio Converter
Specifications
Maximum Operating Temperature:
+40°C
Audio Decoding Type:
Dolby Digital Decoder
Special Features:
Supports Dolby Digital 5.1CH audio Sampling rates of 48kHz, Supports Dolby Digital audio Downmixing to 2-channel audio, Supports S/PDIF Bitstream 24bits of data for the left and right Channels, Compact, Elegant Design and easy to Instal
Applications:

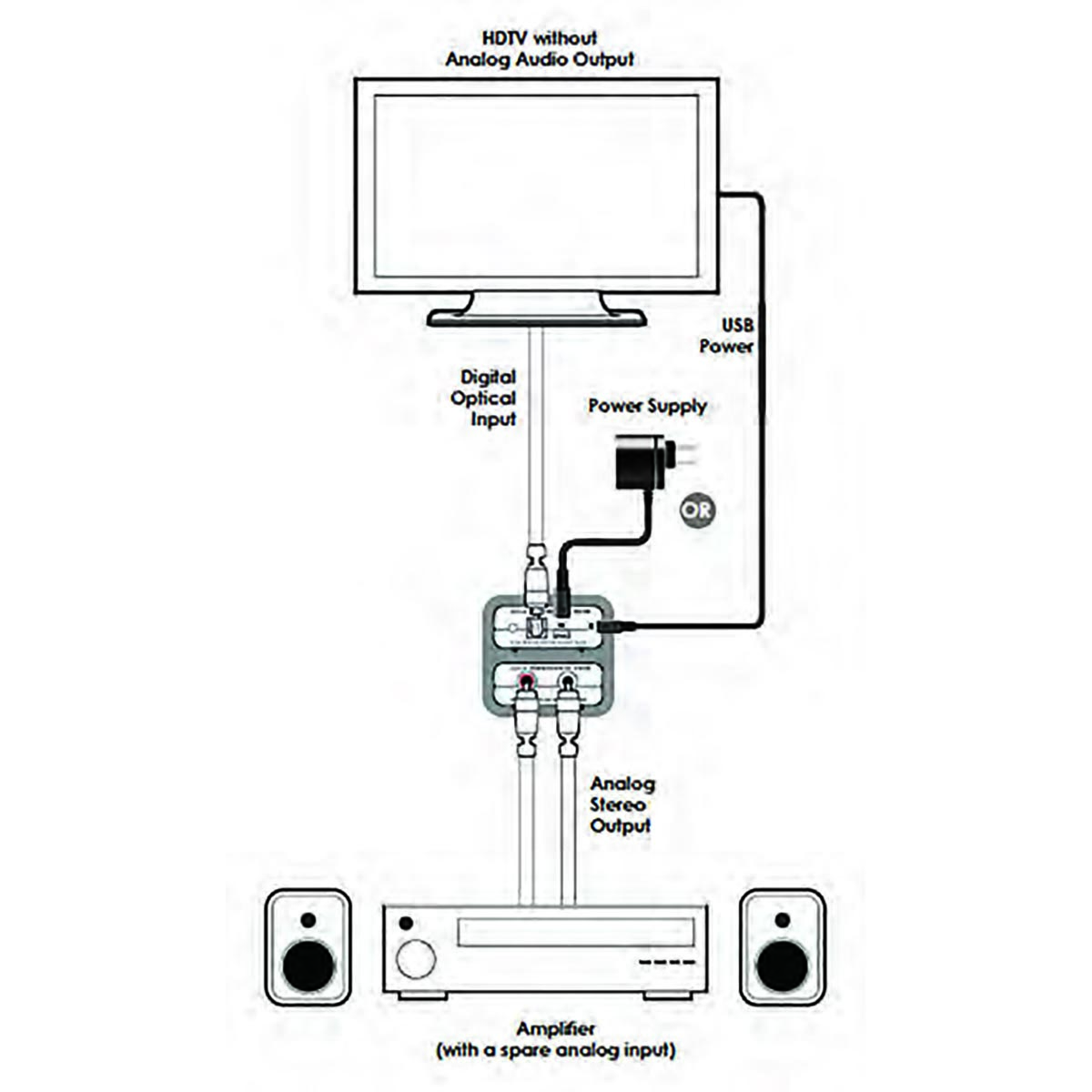

Converting Digital Optical Audio Into Analog Stereo, Converting Dolby Digital Formatted Audio Into Analog Stereo, HDTV with Only Digital Audio Output to Analog Amplifier Input, Improving the Digital to Analog Conversion Quality from any Stereo Optical Dig
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Mini-USB to USB a type cable
Performance
Bit Rate:
48kHz Dolby Digital/96kHz LPCM, I/O Data Rate Support up to 24bits
Inputs and Ports

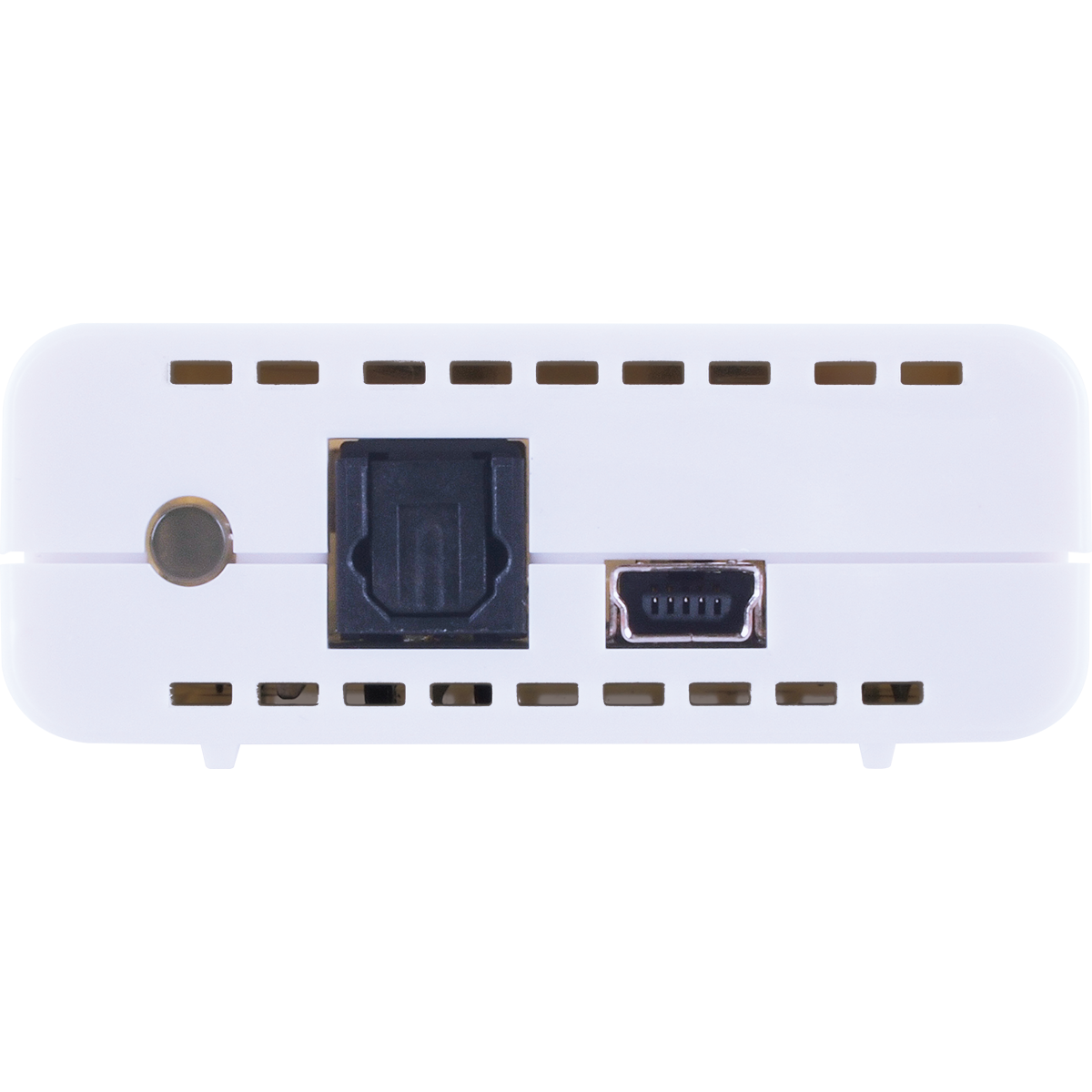

Input Port Type:
1xOptical

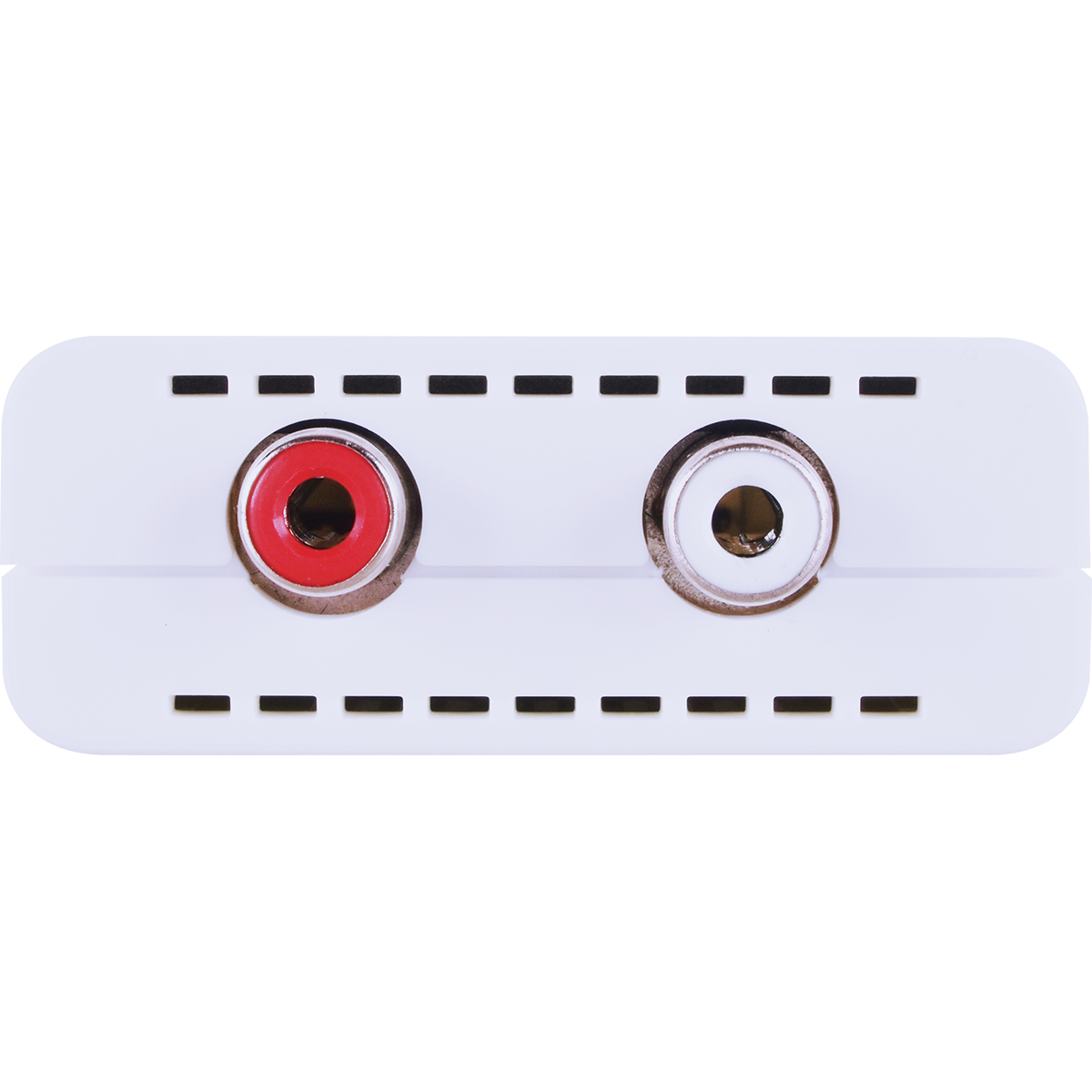

Output Port Type:
1xL/R (2xRCA)
Power
Power Source Type:
USB Bus Power
Dimensions
Width:
5.5cm
Depth:
8.2cm
Height:
2.2cm
Weight:
46g
