CPRO-SE2DD HDMI Audio Converter with Dolby Digital & DTS2.0+ Digital Out Decoder
Please sign in so that we can notify you about a reply
The HDMI Audio Converter with Dolby Digital / DTS 2.0+Digital Out Decoder allows the audio signal from an HDMI input to be de-embedded, downmixed and simultaneously output to both digital (optical or coaxial) and analog audio outputs. This unit allows you to utilize an additional audio output such as an AV receiver or set of active speakers, or to further extend the audio signal pathway.
Features
- Dolby Digital Decoder technology embedded
- DTS 2.0+Digital Out Decoder technology embedded
- Integrated digital interpolator filter and Digital-to-Analog Converter (DAC)
- Supports LPCM input sampling rate up to 96kHz and 2-CH output at 48kHz
- Support Dolby® Digital/DTS® sampling rate up to 48kHz
- Supports simultaneous audio outputs on HDMI, analog R/L, Coaxial and Optical
- HDMI (with 3D & 4K2K supported) and HDCP compliant
- Supports HDTV resolutions up to 4Kx2K (3840x2160@24/25/30, 50/60 YUV_420 & 4096x2160@24, 50/60 YUV_420)
- Supports HDMI data rate from 300Mbps to 3Gbps and ‘Deep Color’ up to 1080p/36-bit
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Audio Converter
Cable Length:
10m
HDMI Embedded Audio Channels:
Dolby Digital Decoder Technology, DTS 2.0+Digital Out Decoder Technology
Maximum Operating Temperature:
+40°C
Audio Decoding Type:
Dolby Digital or DTS Audio Signals from HDMI Input Port
Special Features:
Integrated Digital Interpolator Filter and Digital-to-Analog Converter (DAC), Supports LPCM Input Sampling Rate Up to 96kHz and 2-CH Output at 48kHz, Support Dolby Digital/DTS Sampling Rate Up to 48kHz, Supports Simultaneous Audio Output on HDMI, Analog R
Applications:
Non-HDMI AV Receivers, wider Audio Systems, Audio extraction, Extension, Home Entertainment Installation
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
5V/2.6A Power Adaptor
Performance
Resolution:
640x480@60Hz/72/75/85, 720x480@60Hz, 720x576pixels@50Hz, 800x600@56/60/72/75/85, 1024x768@60Hz/70/75/85, 1280x720@50Hz/60Hz, 1280x720pixels@60Hz, 1280x768@60Hz/70/75/85, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1080i@50Hz/60Hz, 1
HDMI Bandwidth:
300MHz, 9Gbps
Bit Rate:
300Mbps to 3Gbps, 1080p/36bits

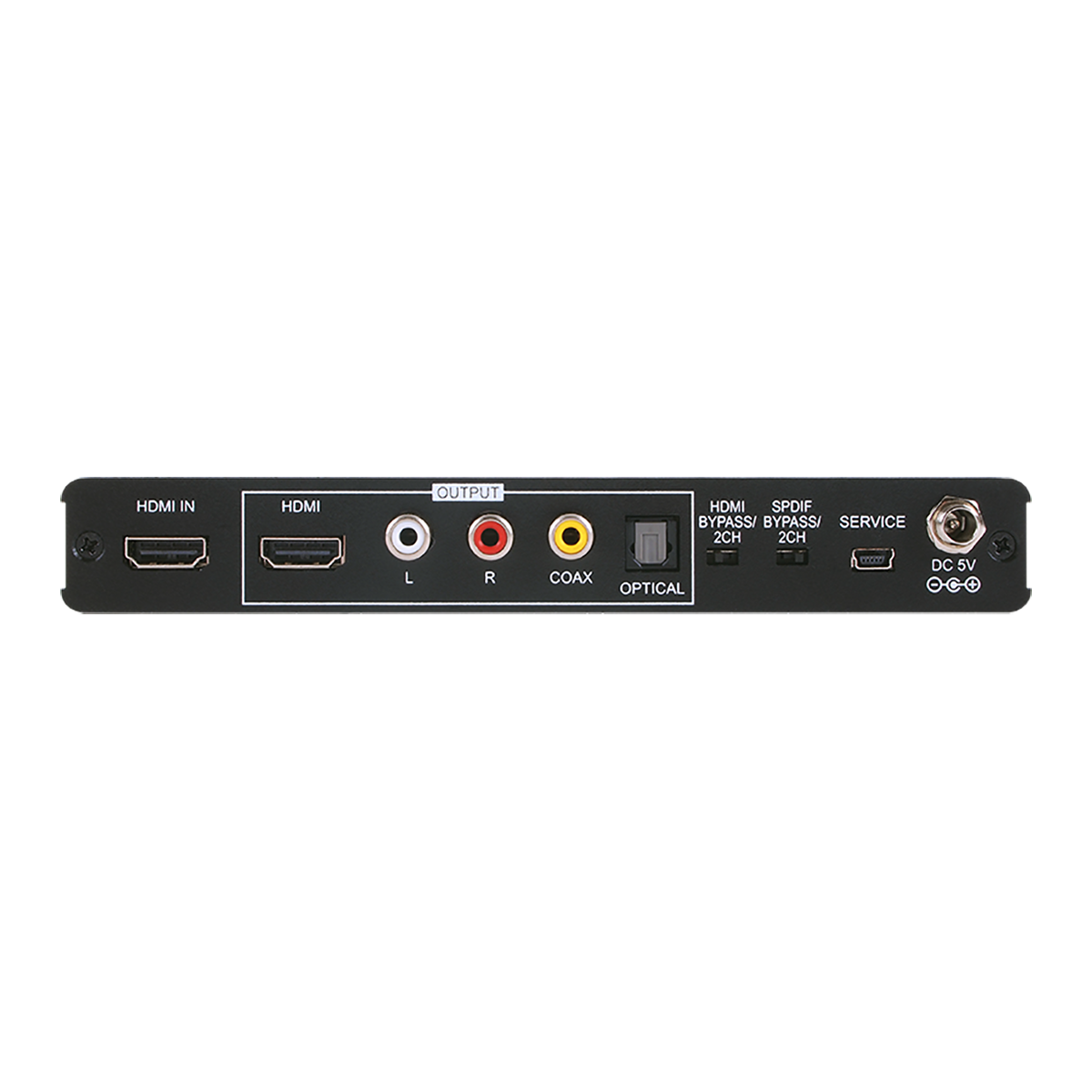

Inputs and Ports
Input Port Type:
1xHDMI, 1xUSB
Output Port Type:
1xHDMI, 1xR/L, 1xCoaxial, 1xOptical
Interface Type:
1xHDMI
Power
Current Rating:
2.6A
Dimensions
Width:
18cm
Depth:
11.07cm
Height:
2.5cm
Weight:
368g
Other
Standards Met:
US/EU, CE/FCC Compliant/UL Listed
