CPLUS-VPE2DD HDMI 4K UHD to Audio Converter with Dolby Digital & DTS Decoder

Write a review
CPLUS-VPE2DD
Cypress Technology
Log in to see price Add to wish list

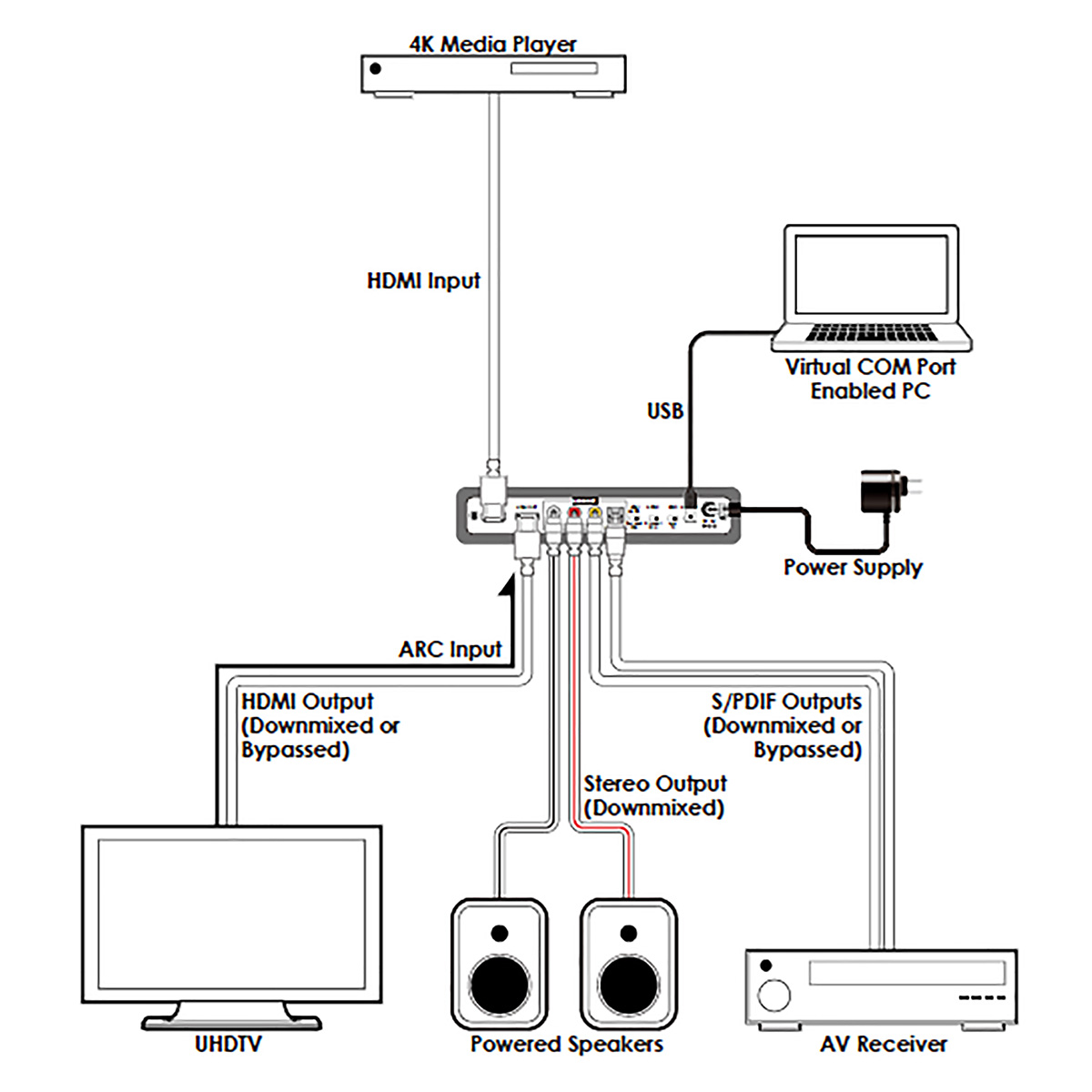

This Audio Decoder supports the transmission of high bandwidth (18Gbps) video and allows the associated audio signal to be simultaneously extracted and split to both digital and analog audio outputs, providing high quality audio and video performance.This unit can decode standard Dolby Digital & DTS formats up to 5.1 and output the audio as stereo (LPCM 2.0) over HDMI, S/PDIF (optical and coaxial) and analog RCA connections. It can also support the passthrough of Bitstream, HD Bitstream, or LPCM 7.1 with audio sampling rates up to 192kHz if needed. If the connected display supports ARC (Audio Return Channel), and has it enabled, then this unit can extract the ARC audio and output it via all available audio outputs.Both the input and output HDMI ports support 4K UHD resolutions up to 4K@60Hz (4:4:4, 8-bit). Built-in EDID management support allows the user to select from multiple EDIDs and, with the use of optional PC software, to upload, download, or edit EDID files.

Features

  • HDMI input and output with 18Gbps (600MHz) 4K UHD support
  • DVI 1.0 compatible with the use of an HDMI-DVI adaptor
  • HDCP 1.4 and 2.2 compliant
  • Supports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit)
  • Supports 48-bit Deep Color up to 1080p@60Hz
  • Supports passthrough of LPCM 7.1, Bitstream and HD Bitstream audio formats over HDMI
  • Embedded Dolby Digital Decoder technology
  • Embedded DTS 2.0+Digital Out Decoder technology
  • Integrated digital interpolation filter and Digital-to-Analog Converter (DAC)
  • Supports LPCM sampling rates up to 96kHz
  • Supports Dolby Digital sampling rates up to 48kHz
  • Supports DTS sampling rates up to 96kHz
  • Simultaneous audio output via HDMI, analog stereo, Coaxial and Optical
  • Supports coaxial and optical audio sampling rates up to 96kHz
  • Supports extracting the HDMI audio signal from an HDTV’s ARC feature
  • Provides EDID management with EDID bypass and 1 user modifiable EDID
  • PC based EDID management tool support
  • Supports RS-232 style control via a Virtual COM port over USB
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Decoder
Cable Length:
10m (1080p@60Hz/12bits), 3m (4K@60Hz/4:4:4/8bits)
HDMI Embedded Audio Channels:
Dolby Digital Decoder Technology, DTS 2.0+Digital Out Decoder Technology
Maximum Operating Temperature:
+40°C
Audio Decoding Type:
HDMI Input and Down-Mixing to LPCM 2.0
Special Features:
DVI 1.0 Compatible with the use of an HDMI-DVI adaptor, Supports LPCM Sampling rates Up to 96kHz, Supports Dolby Digital Sampling rates Up to 48kHz, Supports DTS Sampling rates Up to 96kHz, Supports Extracting the HDMI audio signal from an HDTV’s ARC Fe
Control Interface Type:
1xUSB Mini-B
Applications:
Non-HDMI AV Receivers or Powered Speaker Systems, AV System Integration, Home Theatre Installation, HDMI Sources on DVI Displays with Analog, HDMI/DVI EDID Management
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1x5V/2.6A DC Power Adapter
Performance
Resolution:
640x480, 800x600, 1024x768, 1280x720, 1280x768, 1280x800 1280x1024, 1360x768, 1600x1200, 1920x1200, 720x480pixels, 720x576pixels, 1280x720pixels, 1920x1080i, 1920x1080pixels, 3840x2160pixels (YUV4:2:0), 4096x2160pixels (YUV4:2:0), 3840x2160pixels, 4096x21
HDCP Compliance Type:
1.4, 2.2
HDMI Bandwidth:
600MHz, 18Gbps
Bit Rate:
4K UHD Resolutions up to 4K@60Hz (4:4:4, 8bits)
Inputs and Ports
Input Port Type:
1xHDMI
Output Port Type:

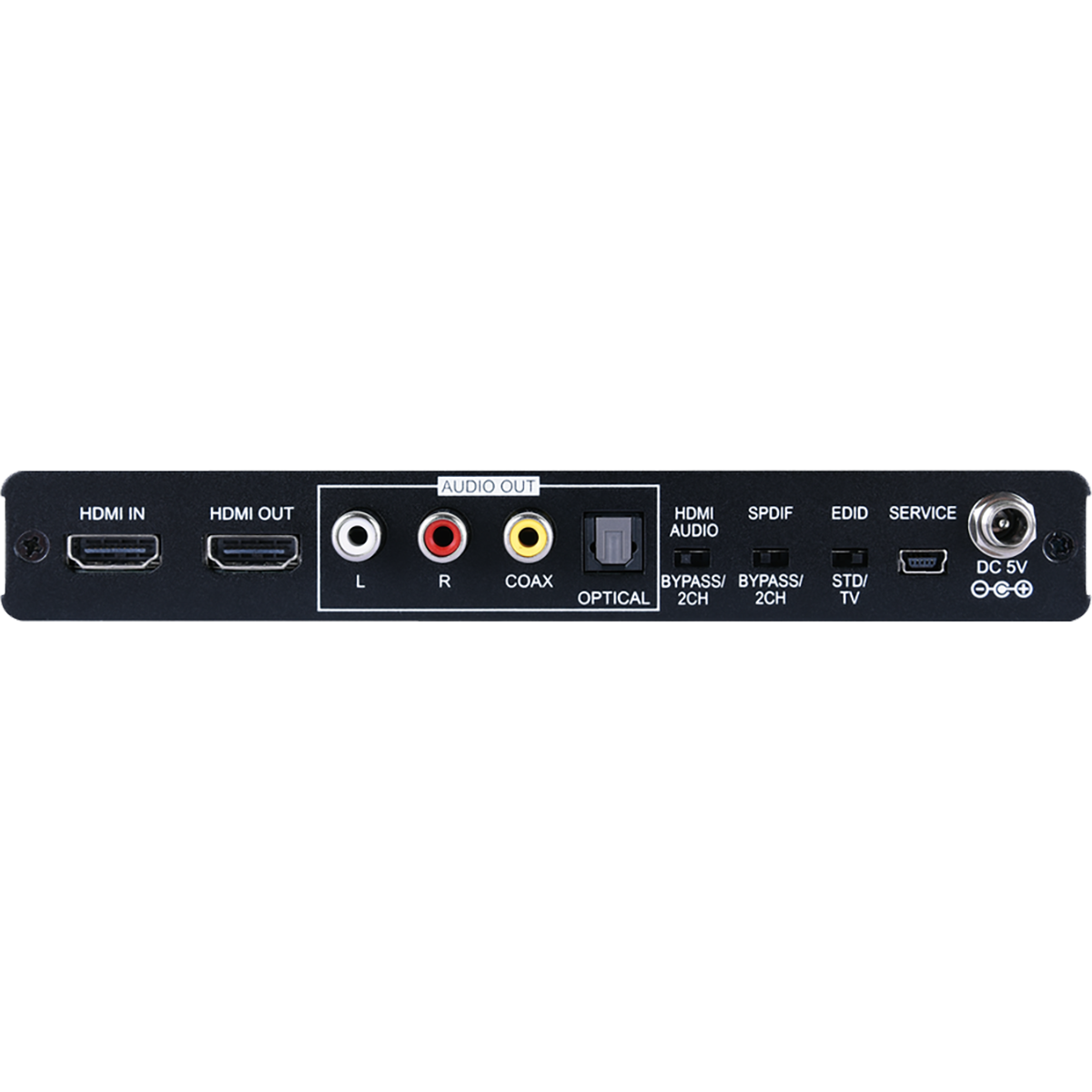

1xHDMI, 1xOptical (S/PDIF), 1xCoaxial (S/PDIF), 2xRCA (Stereo)
Interface Type:
1xHDMI
Power
Current Rating:
2.6A
Dimensions
Width:
18cm
Depth:
10.4cm
Height:
2.5cm
Weight:
374g
Other
Standards Met:
US/EU, CE/FCC Compliant/UL Listed
