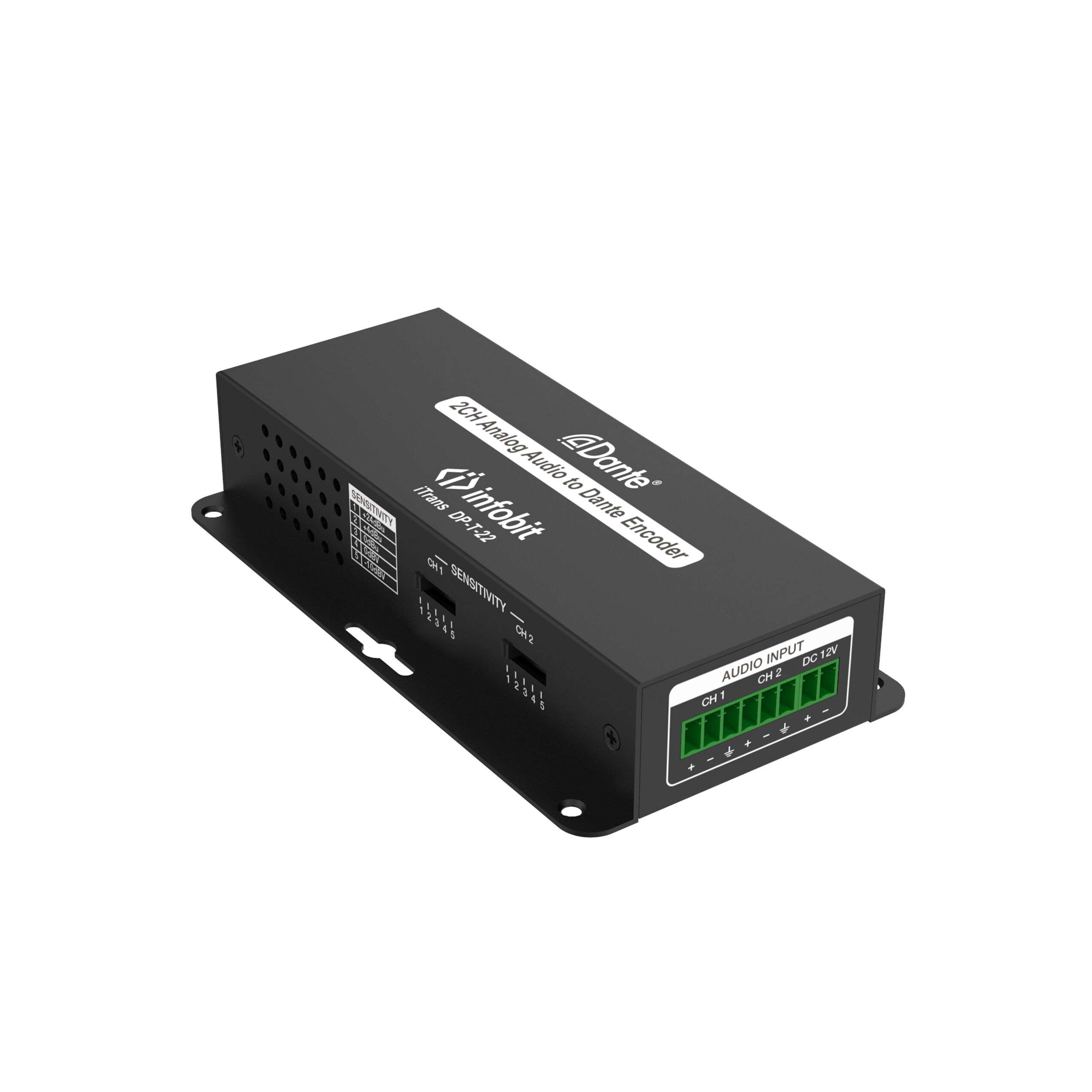

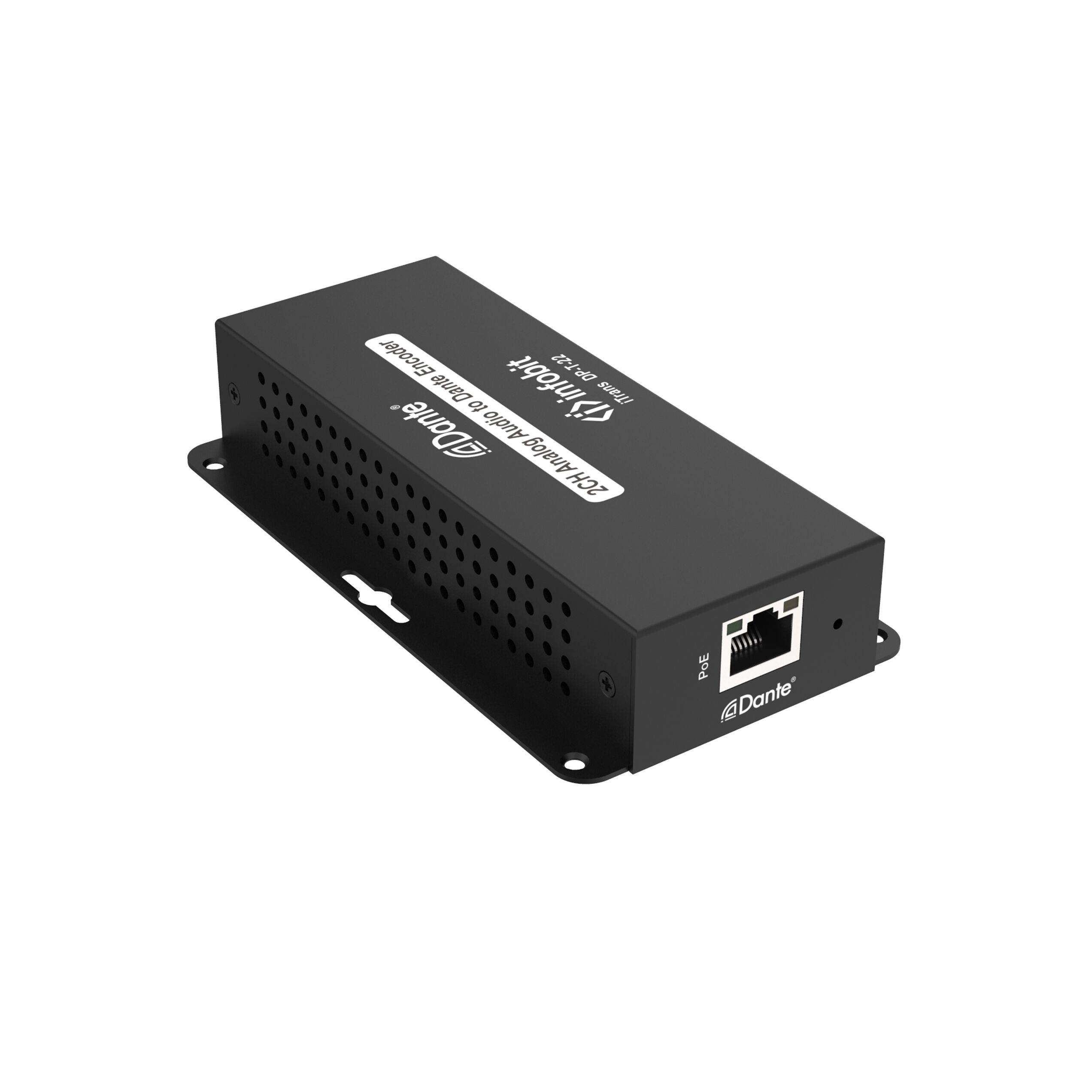

iTrans DP-T-22 Dante 2CH Analog Audio Encoder (Tx) with PoE, phoenix port
Please sign in so that we can notify you about a reply
The iTrans DP-T-22 is an audio transmitter based on the Dante Ultimo solution. It encodes the audio signal and then transmits to the decoder through Dante network, supporting AES67 RTP audio transmission. This product also supports 2 channels unbalanced or balanced analog audio input, 5-level sensitivity adjustment and PoE power supply
Features- Analog audio input supports balanced/unbalanced audio input (unbalanced access to "+" and "GND")
- Audio sampling rate supports 44.1KHz, 48KHz, 88.2KHz and 96KHz, @16bit/24bit/32bit
- Dante solution supports AES67 RTP audio transmission
- Audio input supports 5-level sensitivity adjustment： +24dBu, +4dBu, 0dBu, 0dBV and -10dBV
- Support DC 12V power supply and PoE power supply (IEEE802.3af Class 1 compliant)
Brand:
Infobit
Product Type:
Analog Audio Encoder
Specifications
Cable Length:
100m
HDMI Embedded Audio Channels:
PCM 2.0@16bit/24bit/32bit, 44.1kHz/48kHz/88.2kHz/96kHz
Maximum Operating Temperature:
+40°C
Recording File Format:
PCM 2.0 44.1kHz/48kHz/96kHz, up to 24bit
Audio Decoding Type:
PCM 2.0@16bit/24bit/32bit, 44.1kHz/48kHz/88.2kHz/96kHz
Special Features:
Dante Solution Supports AES67 RTP Audio Transmission
Control Interface Type:
1xRJ45
User Interface Indicator Type:
LED
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1×iTrans DP-T-22, 1×6Pin-3.81mm Phoenix Connector, 1×2pin-3.81mm Phoenix Connector, 1×User Manual
Performance
Audio Encoding and Bitrate:
PCM 2.0@16bit/24bit/32bit, 44.1kHz/48kHz/88.2kHz/96kHz
Inputs and Ports
Audio Input Type:
PCM 2.0@16bit/24bit/32bit, 44.1kHz/48kHz/88.2kHz/96kHz
Input Port Type:
1×Dante, 2×Audio
Interface Type:
1xRJ45
Connectivity
Network Switch Type:
100/1000M Network Switch
Power
Current Rating:
1A
Power Source Type:
PoE, External Supply
Dimensions
Width:
13cm
Depth:
7cm
Height:
2.6cm
Weight:
230g
Other
Voltage Rating:
12V DC
Standards Met:
IEEE802.3af Class 1
