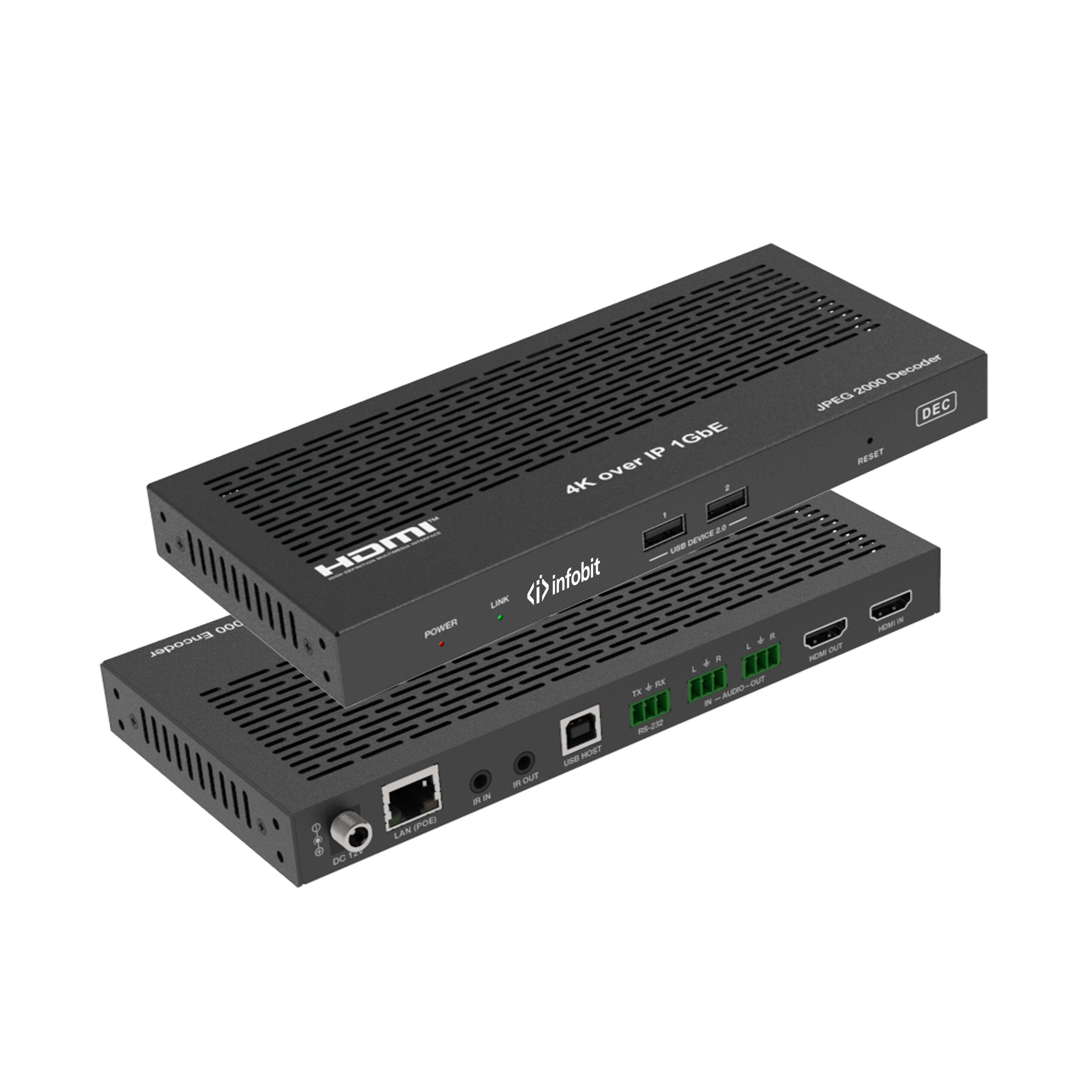

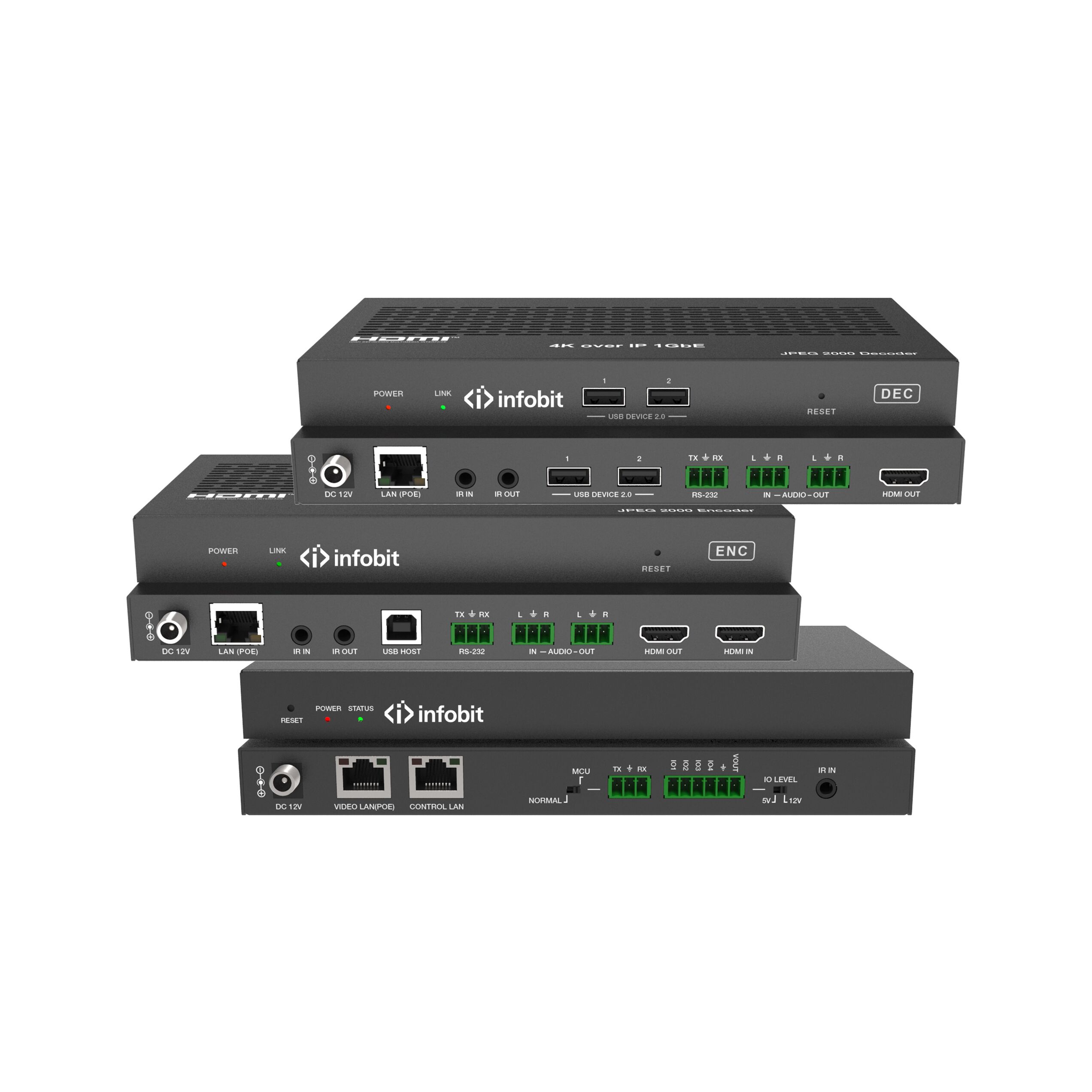

iSwitch 2000T AV over IP Encoder, HDMI 4K60 JPEG 2000, KVM, Tx
Please sign in so that we can notify you about a reply
Encoder input supports up to 4K60, audio embedding or audio out. The product supports USB2.0/KVM, 1G Ethernet, bidirectional RS-232, two-way IR control and POE function. Guest mode control of RS-232, IR, CEC supported. Built-in secondary H.265 stream which supports plenty API commands to achieve flexible configurations is useful for 3rd party control Apps to preview video content. As the H.265 stream can be accessed in a different domain from JPEG2000 main stream via tagged its LAN ID, this makes it possible to isolate the network systems of main stream which works in Video LAN and secondary stream which works in Control LAN. The system is based on Linux for software development, provides flexible control methods, that are based on the intelligent networking of 1G Ethernet Switch
Features- Decoder output supports up to 4K30, audio extracting or audio in transmitted to Encoder audio out
- Support 18Gbps video bandwidth
- Input supports up to 4K60 4:4:4, output supports 4K30 4:4:4
- Transmit video, audio, IR , RS-232, CEC and USB signals over Ethernet
- Support unicast and multicast functions
- Support point-to-point, video matrix and video wall functions (video wall supports up to 9x9)
- Intelligent video wall class management makes it achievable of wall-in-wallor novel layout of wall configurations
- JPEG2000 Main Stream and standard H.265 codec Secondary Stream (SS)
- Support Secondary Stream VLAN tagging and parameters configuration
- Support 1G Ethernet Switch, router and hub device transmission
- Support POE function
- Smart networking design for easy and flexible installation
