CPLUS-VHHE HDMI 4K UHD+ EDID Emulator with HDCP Converter
Please sign in so that we can notify you about a reply
This 4K UHD EDID Emulator with HDCP Converter is a handy device to include in your HDMI signal tool box. With support for full HDMI 2.0 bandwidth (up to 6Gbits per channel), HDCP analysis and conversion, EDID management, and YUV 4:2:0 color subsampling, this unit can help solve or diagnose many common HDMI issues. This unit provides a quick and easy way to view the status of an HDMI signal. Additionally, this unit provides a robust EDID management system, allowing the user to download or upload existing EDIDs, or to create a basic custom EDID from scratch for use within the unit. The unit’s included hot keys and simple LED design allows the user to quickly switch between different configurations while viewing the HDMI status information.
Features
- HDMI input and output with 18Gbps (600MHz) 4K UHD support
- DVI 1.0 compliant with the use of an HDMI-DVI adapter
- HDCP 1.4 and 2.2 compliant
- Supports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit)
- Supports pass-through of LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream audio formats
- Video source signal and display EDID analysis
- HDCP 2.2 to 1.4 conversion
- EDID selectable between internal, external and user’s custom EDID
- PC-based EDID management tool support

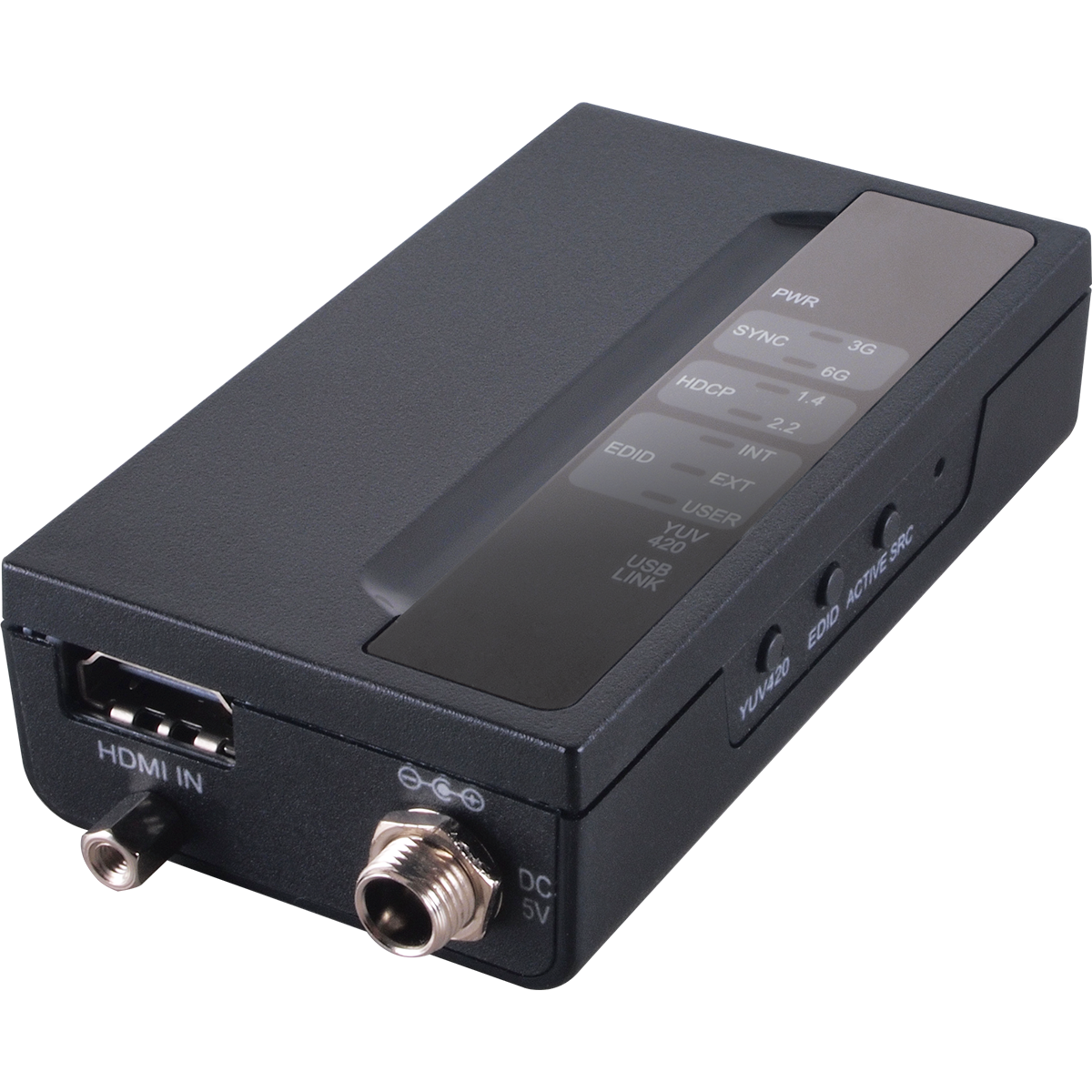

- LED display with easy viewing of the current signal status
- Supports 18Gbps bandwidth bypass and 18Gbps color subsampling to 10.2Gbps (4K@50/60Hz, 4:4:4 to 4K@50/60Hz, YUV 4:2:0)
- Supports firmware updates via USB
Brand:
Cypress Technology
Product Type:
4K UHD + EDID Emulator
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Power Rating:
3.3W
Chassis Material:
Plastic
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1x5V/2.6A DC Power Adaptor
Performance
Resolution:
480i@60Hz-4K@60Hz (4:4:4, 8bits), VGA@60Hz-WUXGA@60Hz (RB)
HDMI Compliance Type:
DVI 1.0
HDCP Compliance Type:
1.4, 2.2
Output Signal Type:
4K (YUV 4:2:0)
Inputs and Ports
Input Port Type:
1xHDMI

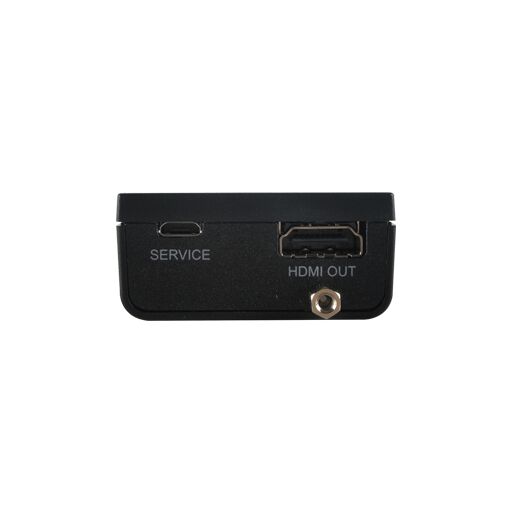

Output Port Type:
1xHDMI
I/O Interface Type:
1xUSB Micro-B
Interface Type:
1xHDMI
Input Signal Type:
6G, YUV 420, HDCP 2.2
Power
Current Rating:
2.6A
ESD Safe (Yes/No):
Yes
Dimensions
Width:
5.1cm
Depth:
9.7cm
Height:
2.2cm
Weight:
58g
Other
Voltage Rating:
5V
Standards Met:
US/EU, CE/FCC Compliant/UL Listed
