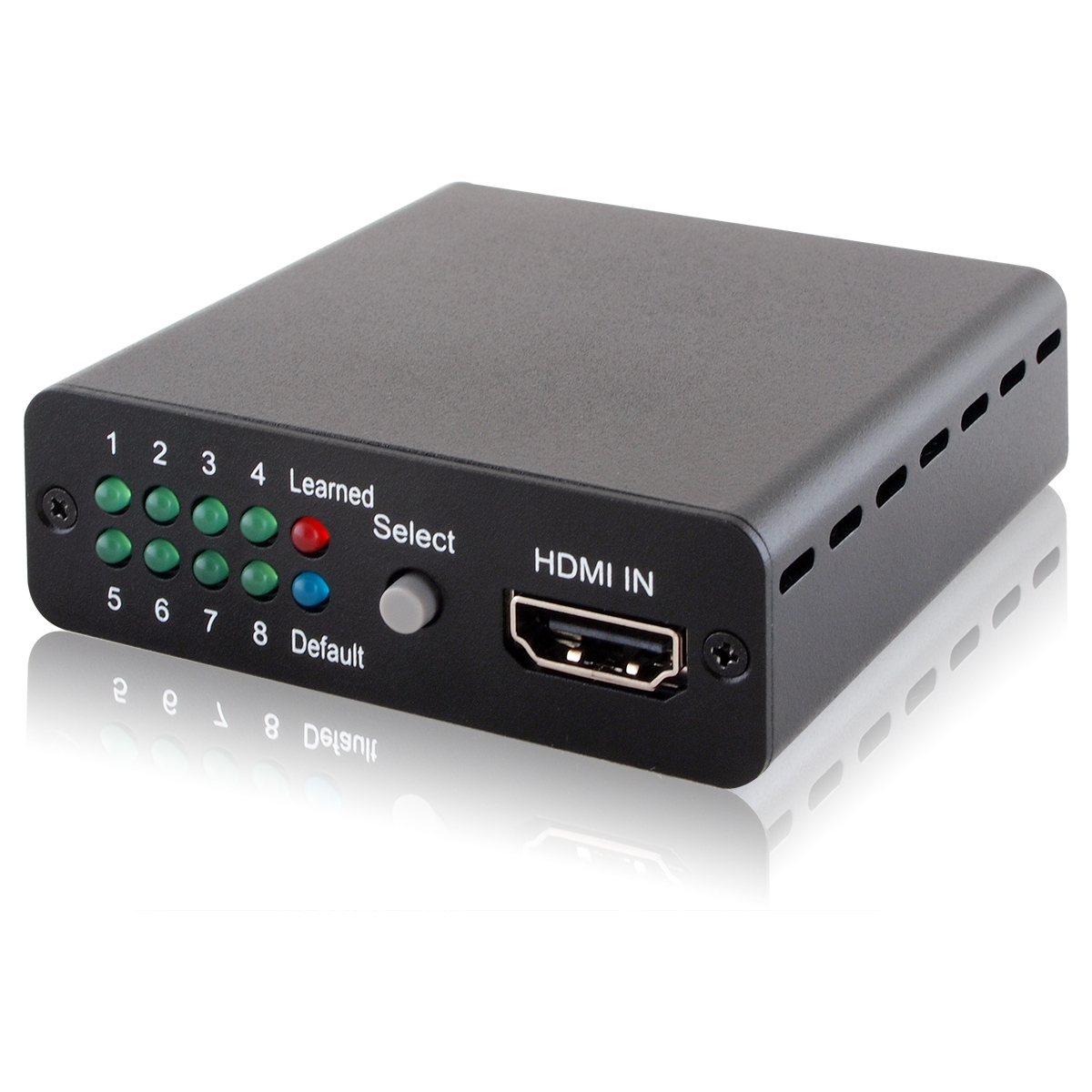

CED-1M HDMI EDID Emulator
Please sign in so that we can notify you about a reply
The HDMI EDID Emulator is designed to allow the adjustment of HDMI/DVI EDID information that is provided to a source device by a connected display so that it can output the correct video/audio signal. Aiming to simplify the technical complications involved in video/audio system integration, home theater installation, video/audio equipment testing and experimentation, the unit’s learning function allows the user to Read and Write the video/audio EDID to the system. It also supports EDID Emulation and Bypass modes.
Features
- Supports the following HDMI features
- High video bandwidth up to 300MHz/9Gbps
- Resolutions up to 1080p@60Hz and 4K×2K@24/25/30Hz
- 12-bit Deep Color
- LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master
- Audio (Sampling rates from 32kHz to 192kHz)

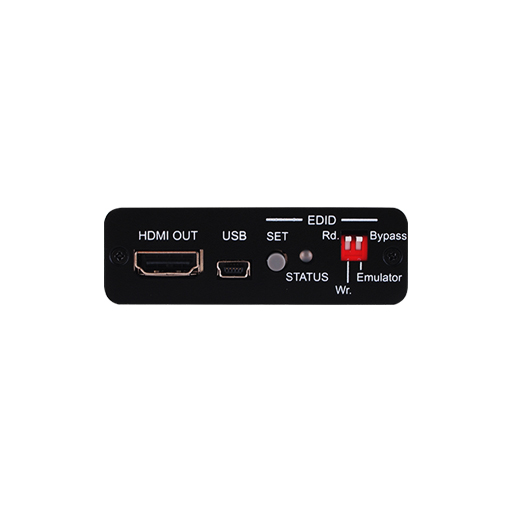

- Supports four different EDID functions:
- Read: Reads the TV/display’s EDID information
- Write: Overwrites the TV/display’s EDID information (TV/display needs to support overwrite function)
- Emulator: Allows the source device to read the selected EDID information from the unit’s Default or Learned EDID memory
- Bypass: Allows the source device to read the EDID information directly from the TV/display
- Supports up to 8 sets of default EDID settings
- Supports DVI sources by using a HDMI to DVI adaptor
- Supports CEC and EDID pass-through
- Supports being powered by USB or compatible HDMI input
Brand:
Cypress Technology
Product Type:
HDMI EDID Emulator
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Power Rating:
2.5W
Chassis Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Mini USB to USB Type a Cable
Performance
Resolution:
1920x1080pixels@60Hz, 1920x1200pixels@60Hz RB, 1920x1080pixels@60Hz, 1920x1200pixels@60Hz RBUSB
HDMI Compliance Type:
1.3 (DVI 1.0)
HDCP Compliance Type:
1.4
Output Signal Type:
1080p60 12bits
Inputs and Ports
Input Port Type:
1xHDMI, 1xUSB (Power Only)
Output Port Type:
1xHDMI
I/O Interface Type:
1xUSB (Power Only)
Interface Type:
Input Port (1xHDMI, 1xMini-USB), Output Port (1xHDMI)
Input Signal Type:
1080p@60Hz 12bits
Power
Current Rating:
500mA
ESD Safe (Yes/No):
Yes
Dimensions
Width:
7.1cm
Depth:
6.5cm
Height:
2.3cm
Weight:
108g
Other
Voltage Rating:
5V
