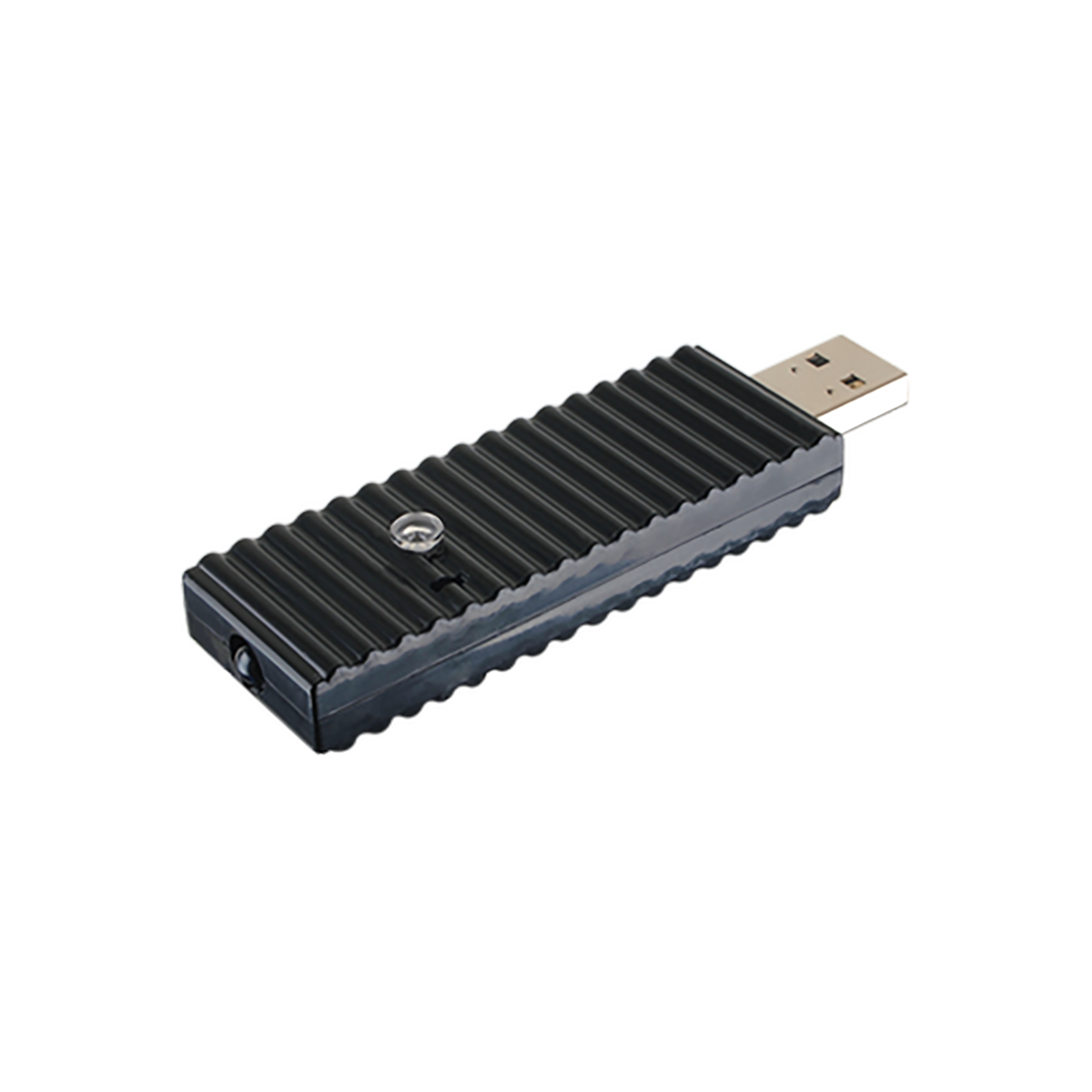

CDPS-IRL Infrared Learner
Please sign in so that we can notify you about a reply
The Infrared Learner is a versatile tool for all your control system design needs. This compact yet functional unit can convert your analog IR commands into digital data and store it for many uses. With the simple software tool the user can store the commands from multiple IR remote controls in a single convenient location such as a laptop for later recall as required. The unit not only learns the IR command but it can also test that the learning was successful by re-transmitting the command to prove that it has been learned correctly. It is compatible with a wide range of IR frequencies and source devices.
Features
- Receives and transmit an IR command to confirm successful learning
- Converts an IR signal into digital data for control system usage
- Compatible with a wide range of IR format and IR frequencies
- Compact USB dongle design
- Simple software installation
Brand:
Cypress Technology
Specifications
Product Type:
IR Learner
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Compact USB Dongle Design, Simple Software Installation
IR Blaster Out Distance:
Up to 10m
IR Frequency:
20 to 60kHz
IR Input Signal Distance:
Up to 1m
For Use With:
Control Systems
Chassis Material:
Plastic
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
IR Learner, Operation Manual
Inputs and Ports
Input Port Type:
1xIR
Output Port Type:
1xIR, 1xUSB
Interface Type:
USB
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
8.55cm
Height:
1.2cm
Weight:
14g
