CDPS-RLY IP to Relay/COM Port/Lighting Controller
Please sign in so that we can notify you about a reply
The Auxiliary Relay Control System is design for multi-purpose and multi-task trigger system usage. With 8 relays to trigger, 8 PWM (Pulse-Width Modulation) to set duty cycle, 8 voltage to set trigger voltage and 1 definition to control through command setting which supports RS-232/422/485 and DM512 that allows up to 25 devices connection for control. Device’s control interfaces like RS-232 and Telnet and PoE (PD) inside design leads user with completely friendly usage.
Features
- Supports 8 Relays, 8 PWM, 8 Voltage and 1 Definition outputs Reply supports close, open and toggle controls with LED illuminators and power up to 30V/DC, 10A
- PWM support 10 volt with 0~100% duty cycle adjustable
- Voltage outputs supports from 0~10 volt with adjustment from 0~100% (0, 0.1, 0.2 ~10 volt)Definition output supports RS-232/422/485 with adjustable baud rate
- DMX-512 data transmission up to 250 Kbaud/s with unidirectional, serial transmission and daisy-chain configuration up to 512 nodes of max time 22ms (roughly 44Hz)
- RS-232/Console supports up to 256 bytes per command
- Supports 5V/2.6A ~ 24V/1.2A DC power supply
- Supports USB and WebGUI firmware update
- Supports RS-232 and Telnet controls
- Control port supports PoE function
Brand:
Cypress Technology
Product Type:
Auxiliary Relay Control System
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Supports USB and WebGUI Firmware Update, RS-232/Console Supports Up to 256 Bytes Per Command, Supports RS-232 and Telnet Control, Definition Output Supports RS-232/422/485 with Adjustable Baud Rate
Chassis Material:
Metal
Applications:
Control System, Lighting Performance Control, System Trigger Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xAuxiliary Relay Control System, 1x5V/2.6A Power Adaptor, 1xRack Ear Set, 1xOperation Manual
Inputs and Ports
Input Port Type:

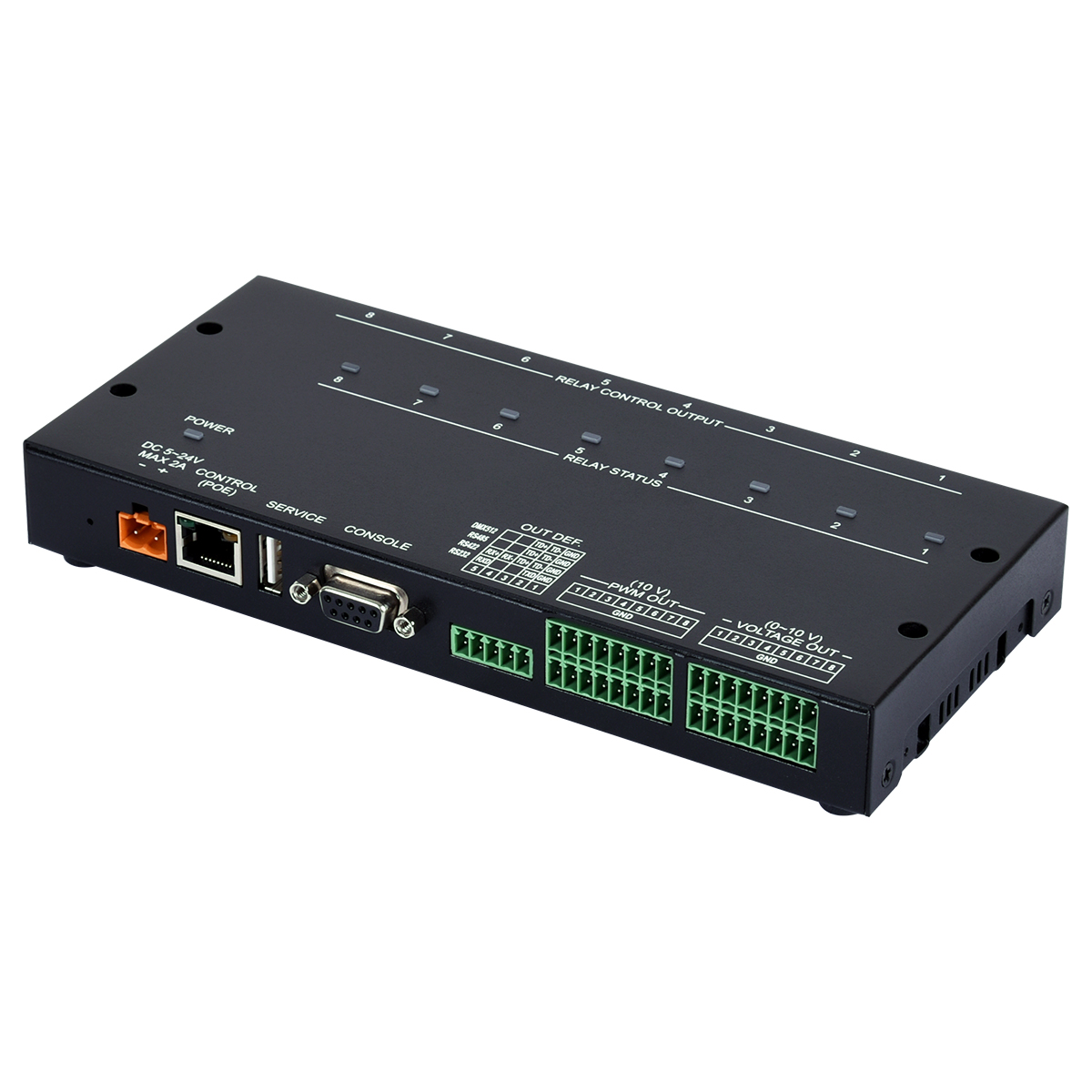

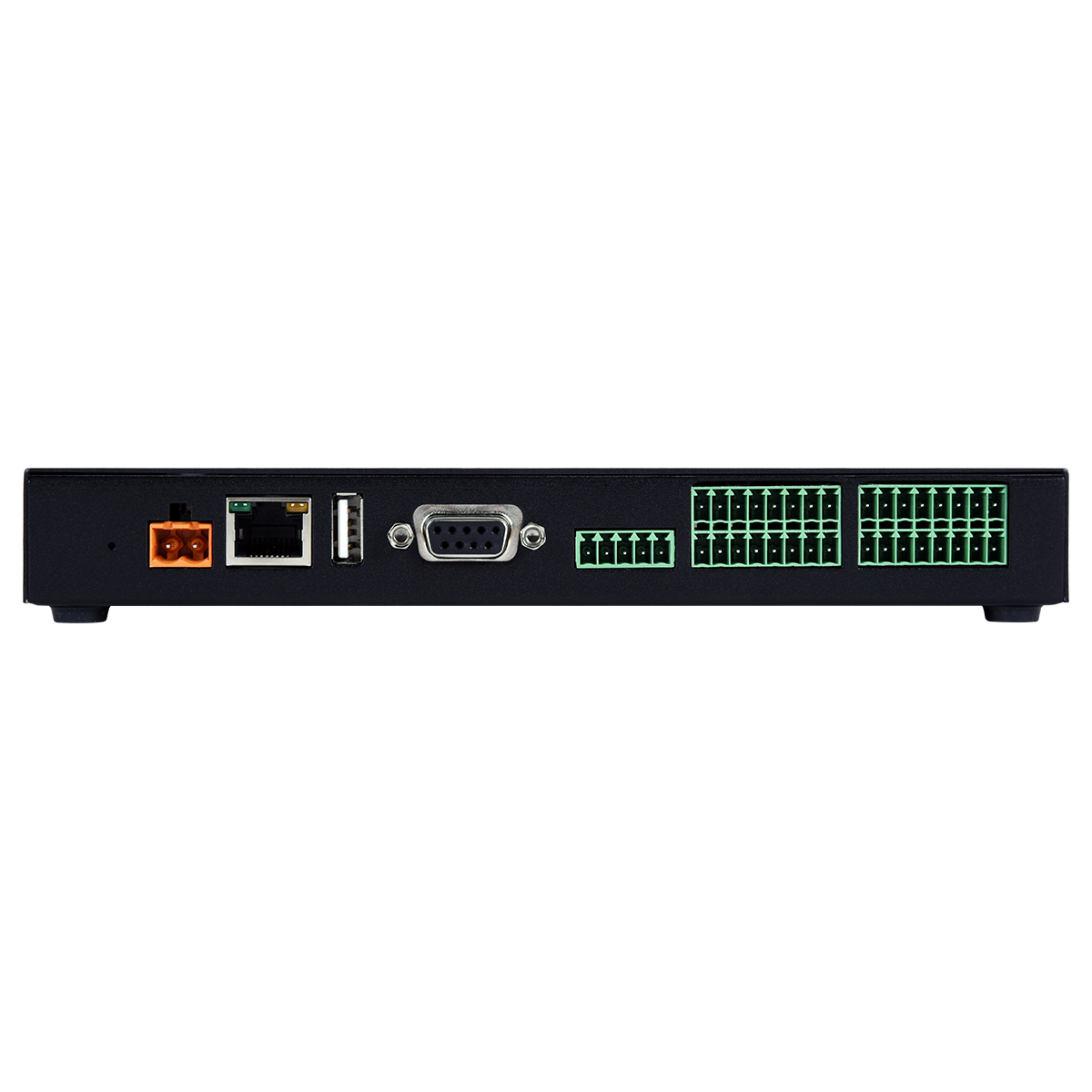

1xIP Control (RJ45), 1xRS-232 (9-Pin D-Sub)
Output Port Type:

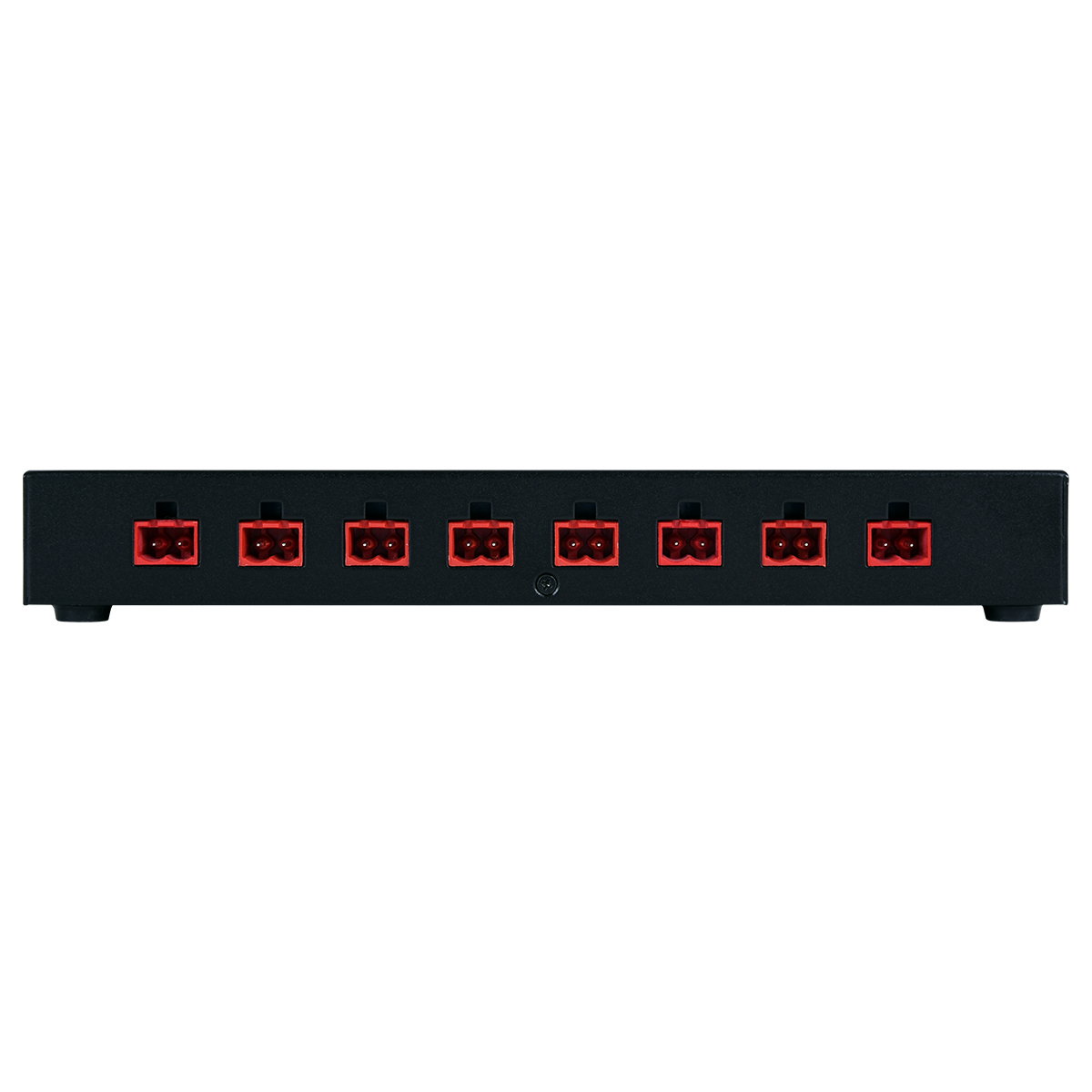

8xRelay (Terminal Block), 8xVoltage (Terminal Block), 8xPWM (Terminal Block), 1xRS-232/RS-422/RS-485/DMX512 (Terminal Block)
Dimensions
Width:
20cm
Depth:
9.5cm
Height:
3.1cm
Weight:
548g
Other
Voltage Rating:
5V
Standards Met:
CE, FCC Complaint, UL Listed
