FC-28 Ethernet to Serial Port, IR, GPI/O & Relay Controller
Please sign in so that we can notify you about a reply

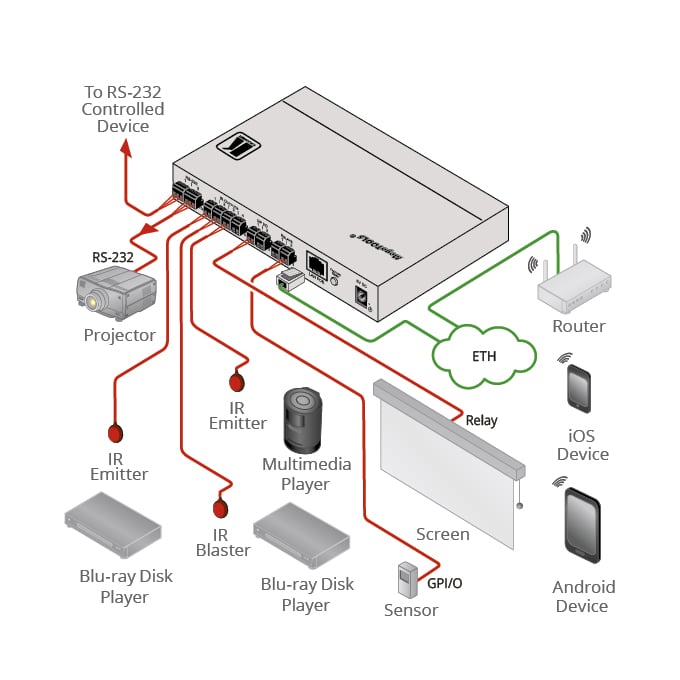

The FC−28 is a PoE−powered control gateway, capable of plug and play deployment over customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS−232, IR, GPI/O and relay control connections. Multiple control clients can be IP−connected to the FC−28 control gateway for concurrent control of two RS−232,four IR controllable devices, such as AV scalers, video displays, audio amplifiers, DVD players, sensors, screens, shades, door locks, and lighting.
Features
- 2 RS–232 Bi–directional Control Ports — Control a device via bi–directional serial control protocols.
- 4 IR Emitter Control Ports — Control a device via IR control protocols.
- 2 GPI/O Control Ports — Controls a device via general purpose I/O ports, program–configured as digital input, digital output or analog input interface for controlling sensors, door–locks, audio volume and light dim level, or lighting control devices.
- 2 Relay Control Ports — Control a device via relay contact closure, such as scrolling up and down screens, drapes, shades, and blinds.
- Simultaneous IP Control Communication — With up to 40 IP control clients.
- IR Sensor Port — Learns commands from IR remotes.
- Mini USB Port — For firmware upgrades and local technical services.
- 1 Ethernet Control Port — Remote protocol–based control port.
- PoE Support — Per IEEE 802.3af standard.
- Built–in Web Pages — Remote browser–based control and support.
- Easy Installation — Single Ethernet cable wires for communication and PoE powering, and plug & play IP auto–setup deployment for simple and cost–reducing installation.
Brand:
Kramer
Part number:
30-80392090
Specifications
Product Type:
GPI/O and Relay, PoE Control Gateway
Supported IR Input Frequencies:
20 to 60kHz
Supported IR Output Frequencies:
20kHz to 1.2MHz
Number of Simultaneous IP-Client Connections:
40
IR Emitter Cable Range:
80m
Cooling Type:
Convection Ventilation
Applications:

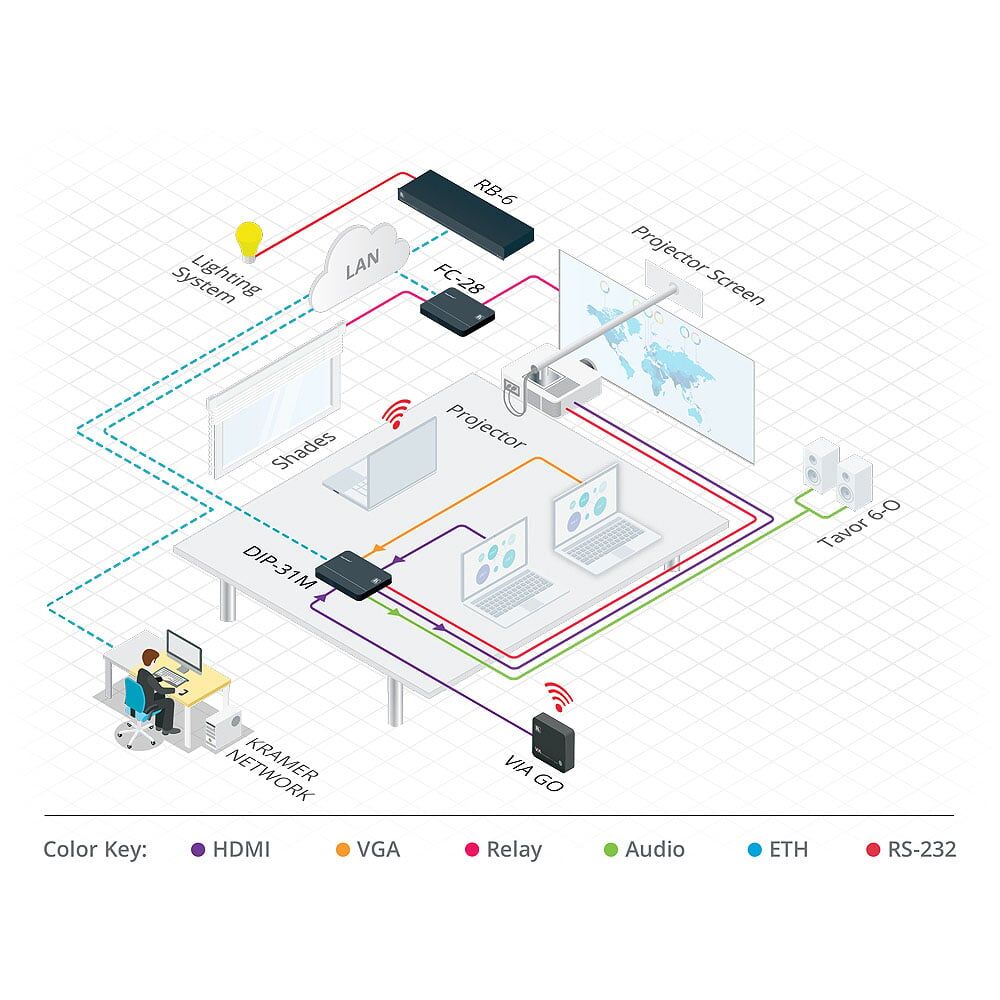

Remote IP Control of RS-232 and IR Controlled Devices, K-Touch Multi-Clients IP Room Control, LAN-Based Expansion of K-Config Control System
Enclosure Material:
Aluminium
Vibration:
ISTA 1A in Carton (International Safe Transit Association)
Humidity:
10 to 90%
Operating Temperature Range:
0 TO +40°C
Includes:
Power Adapter, IR Cable C-A35M/IRE-10
Performance
Supported Serial Port Baud Rate:
1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps
Data Transfer Rate:
Up to 115200bps
Maximum Device Data Rating:
Up to 150Kbps
Inputs and Ports
Port Type:
2 RS-232 Serial on 3-Pin Terminal Block, 2 GPI/O on 2-Pin Terminal Block, 1 Ethernet on an RJ45 Connector, 1 Mini USB Connector for Local Services, 1 Built-in IR Sensor (for Learning)
Number of Ports:
7
Power
Current Rating:
230mA
Dimensions
Width:
19cm
Depth:
11.5cm
Height:
2.7cm
Weight:
0.5kg
Other
Voltage Rating:
5V DC
Standards Met:
CE, RoHS Compliant, WEEE
