FC-22ETH 2-Port Ethernet Controller
Please sign in so that we can notify you about a reply

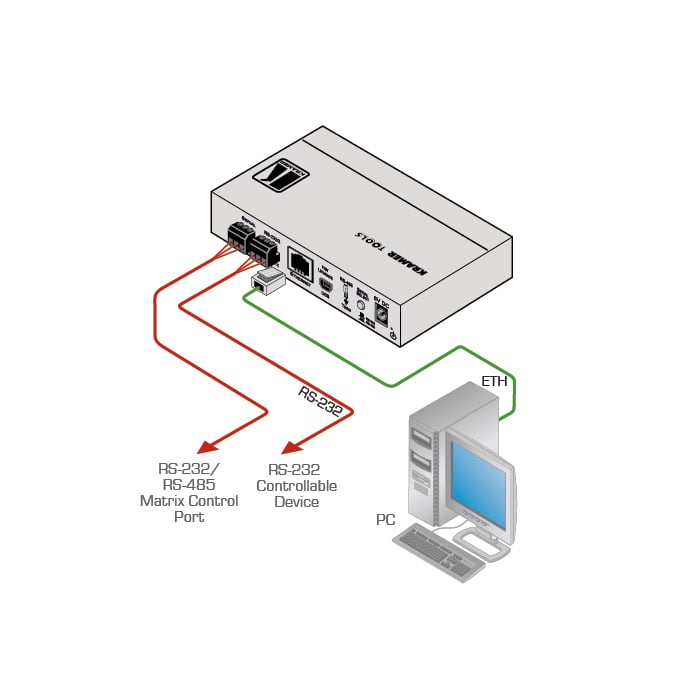

The FC−22ETH is an Ethernet control gateway, capable of plug and play deployment over customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS−232 or RS−485 serial control connections. Multiple control clients can be IP−connected to the FC−22ETH control gateway for concurrent control of two RS−232 or RS−485 controllable devices, such as AV scalers, video displays, and audio amplifiers.
Features
- 1 RS–485 or RS–232 Selectable Bidirectional Control Port — Controls a device via bi–directional serial control protocols.
- 1 RS–232 Bidirectional Control Port — Controls a device via bidirectional RS–232 serial control protocols.
- 1 Ethernet Control Port — Remote protocol–based control port.
- Built–in Web Pages — Remote browser–based control and support.
- Simultaneous IP Control Communication — With up to 40 IP control clients.
- Mini USB Port — For firmware upgrades and local technical services.
- Easy Installation — Plug & play IP auto–setup deployment for simple and cost–reducing installation.
Brand:
Kramer
Part number:
30-80178190
Product Type:
2-Port Serial Control Gateway
Specifications
Cooling Type:
Convection Ventilation
Applications:
Remote IP Control of Serial Controlled Devices, K-Touch Multi-Clients IP Room Control, LAN-Based Expansion of K-Config Control System
Enclosure Material:
Aluminium
Vibration:
ISTA 1A in Carton (International Safe Transit Association)
Humidity:
10 to 90%
Operating Temperature Range:
0 TO +40°C
Includes:
Power Adapter
Performance
Supported Serial Port Baud Rate:
1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps
Data Transfer Rate:
Up to 115200bps
Maximum Device Data Rating:
Up to 150Kbps
Inputs and Ports
Port Type:
1xRS-232/RS-485 Selectable, 1xRS-232 Serial on 3-Pin Terminal Block, 1xEthernet on an RJ45 Connector, 1xMini USB Connector for Local Services
Number of Ports:
4
Power
Current Rating:
200mA
Dimensions
Width:
12cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
Other
Voltage Rating:
5V DC
Standards Met:
CE, RoHS Compliant, WEEE
